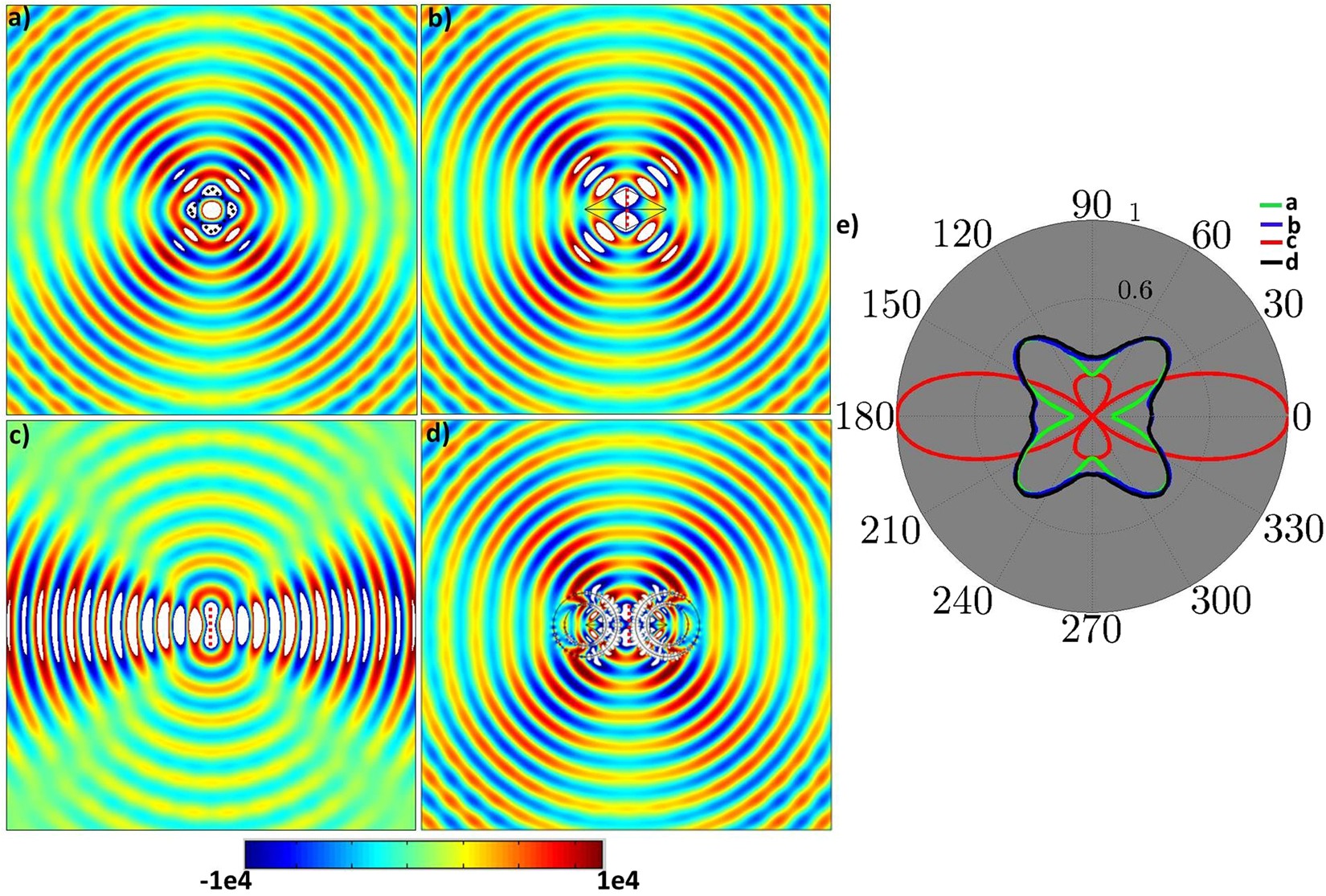

Simulation results of non-contact device for arrays of antenna. (a) A diamond shaped array of antennas is placed in free space. (b) The (a) is transformed into a linear array. (c) The linear array as of (b) is placed in free space without EM medium. (d) The proposed non-contact device is used to distantly change the radiation patterns of (c) to make it similar as that of (b) for the observers. (e) The normalized far-field radiation pattern of (a), (b), (c), and (d).
