Figure 11

From: Salt stress-induced FERROCHELATASE 1 improves resistance to salt stress by limiting sodium accumulation in Arabidopsis thaliana

Figure 11

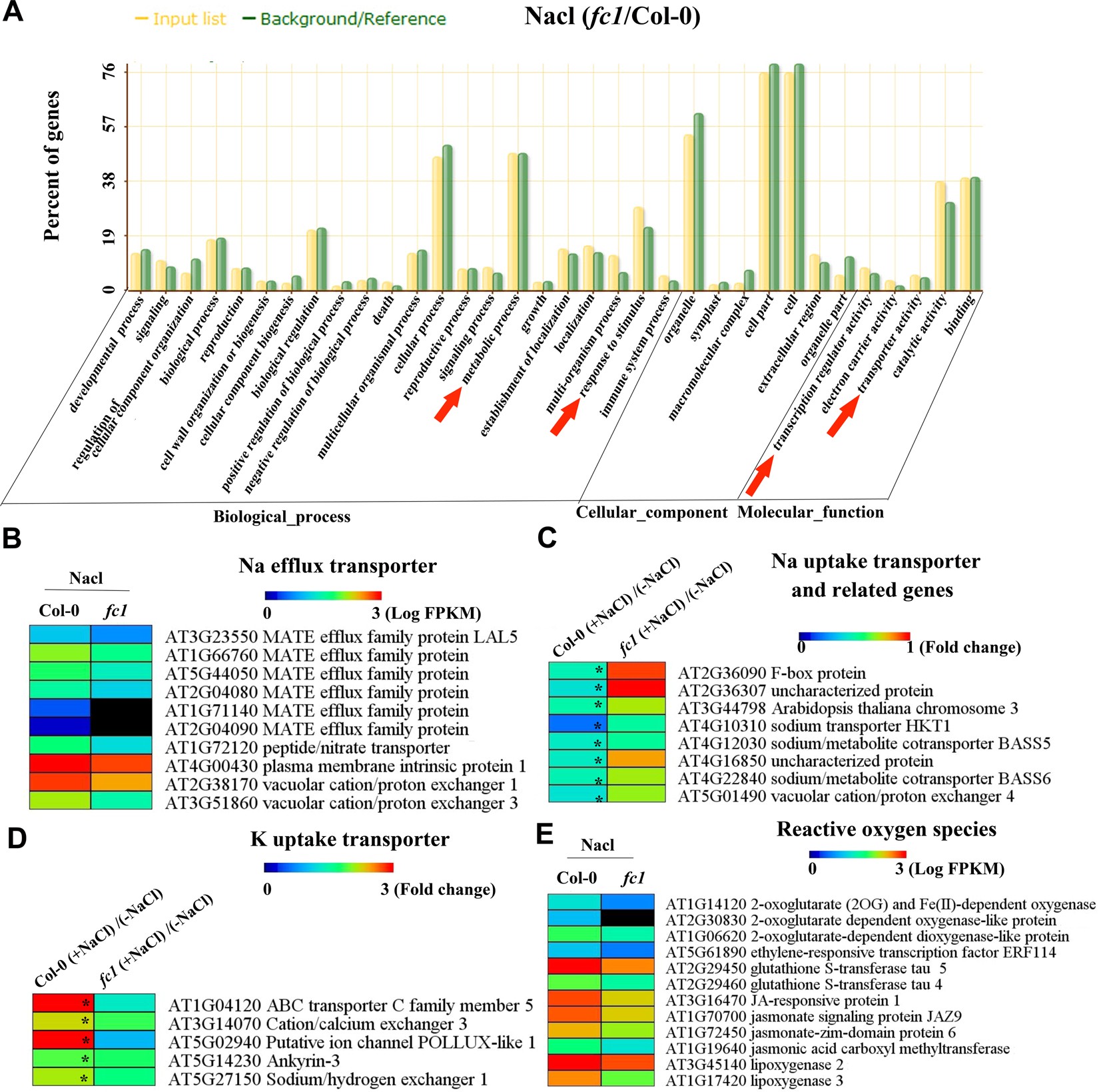

Differential gene expression as determined by mRNA-seq for fc1 seedlings relative to the wild-type (WT, Col-0) under NaCl stress. (A) GO enrichment analysis of specific genes in fc1 mutants which come from the 490 up-expression and 380 down-expression genes of DEGs in fc1 seedlings relative to Col-0 under NaCl stress. (B) Heat map represents the transcript levels of genes encoding Na efflux transporter genes of fc1 mutant and Col-1. (C,D): Heat map represents the DEGs encoding sodium (C) and potassium (D) uptake transporters/related genes in Col-0 and fc1 mutant plants under normal and NaCl stress. Asterisks mean significantly different expressed genes (p < 0.05). (E) Heat map represents the gene expression levels of ROS (Reactive oxygen species)-related genes in Col-0 and fc1 mutant plants.
