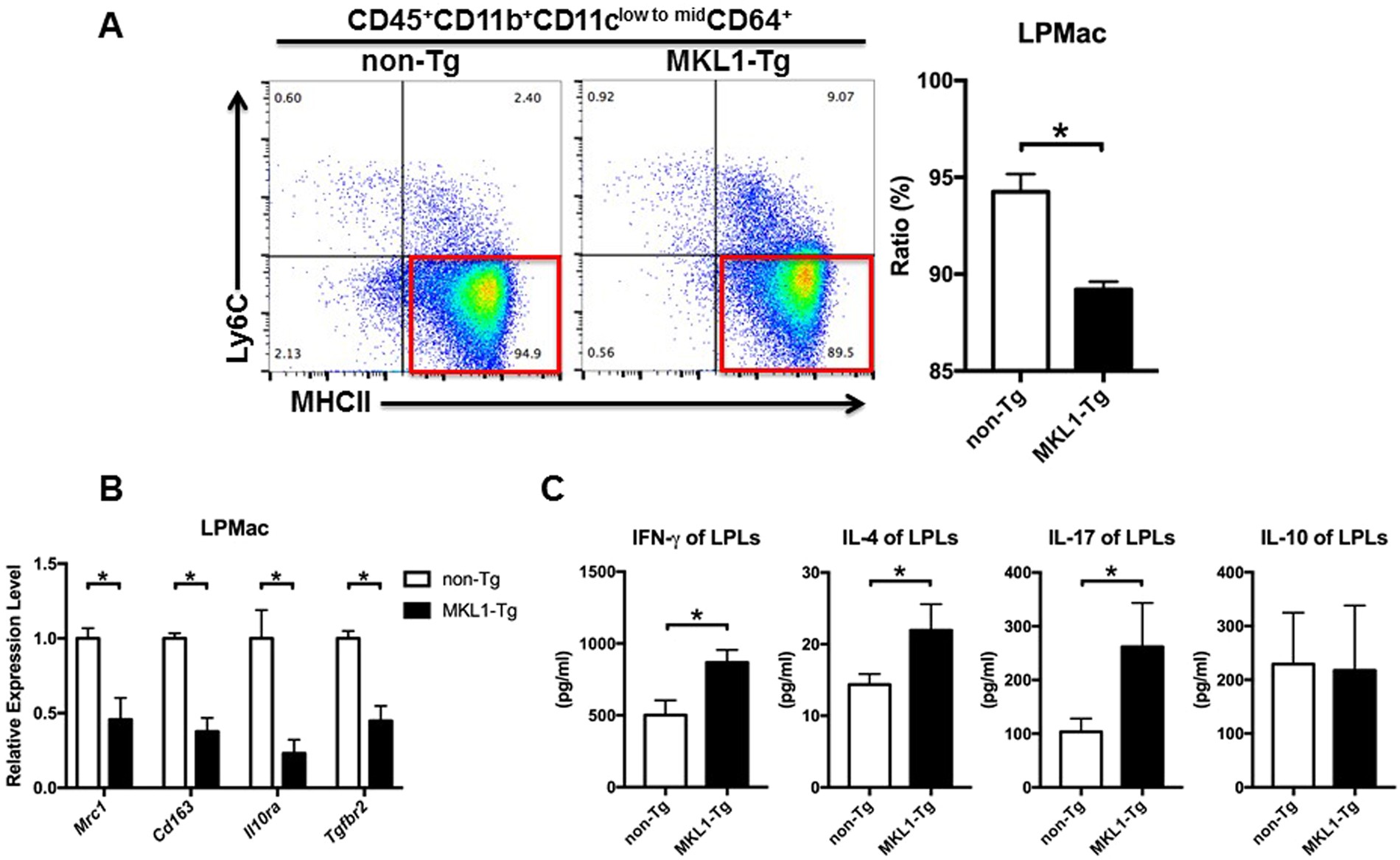

Figure 3

MKL1 overexpression affected the inflammatory phenotype of LPMac. (A) Representative cytograms showing the Ly6C and MHC-II expression on CD45⁺CD11b⁺CD11c^{low to mid}CD64⁺ cells from 6-month-old MKL1-Tg and non-Tg littermates. We also calculated the proportions of LPMac. (B) The expression levels of Mrc1, Cd163, Il10ra, and Tgfbr2 in CD45⁺CD11b⁺CD11c^{low to mid}CD64⁺Ly6C^—MHC-II⁺ LPMac were determined by quantitative RT-PCR. (C) The concentration of IFN-γ, IL-4, IL-17, and IL-10 in supernatants from LPLs were measured by ELISA. All experiments were repeated 3 times and data are shown as mean ± SD. *P < 0.05.
