Figure 5
From: Region and species dependent mechanical properties of adolescent and young adult brain tissue

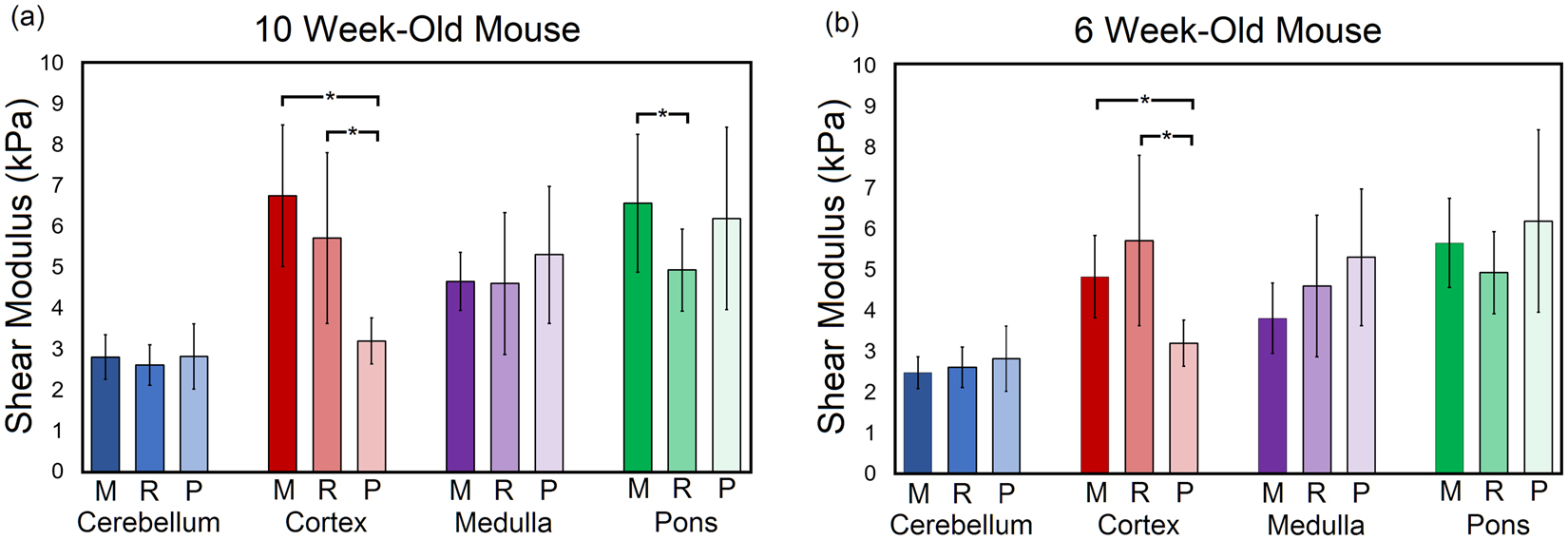

Mean ± standard deviation of the shear modulus values across species including (a) a 10-week-old (10 W) mouse model and (b) a 6 week-old (6 W) mouse model. Both (a and b) have a 20–25-week-old rat model and a 22 week-old pig model. ANOVA with a post-hoc Tukey test was performed for each region across the three species to determine whether significant differences existed for the material properties of brain tissue across species. *Denotes a significant difference, M = mouse, R = Rat, P = Pig. Full list of viscoelastic parameters for all groups are provided in the supplementary material.
