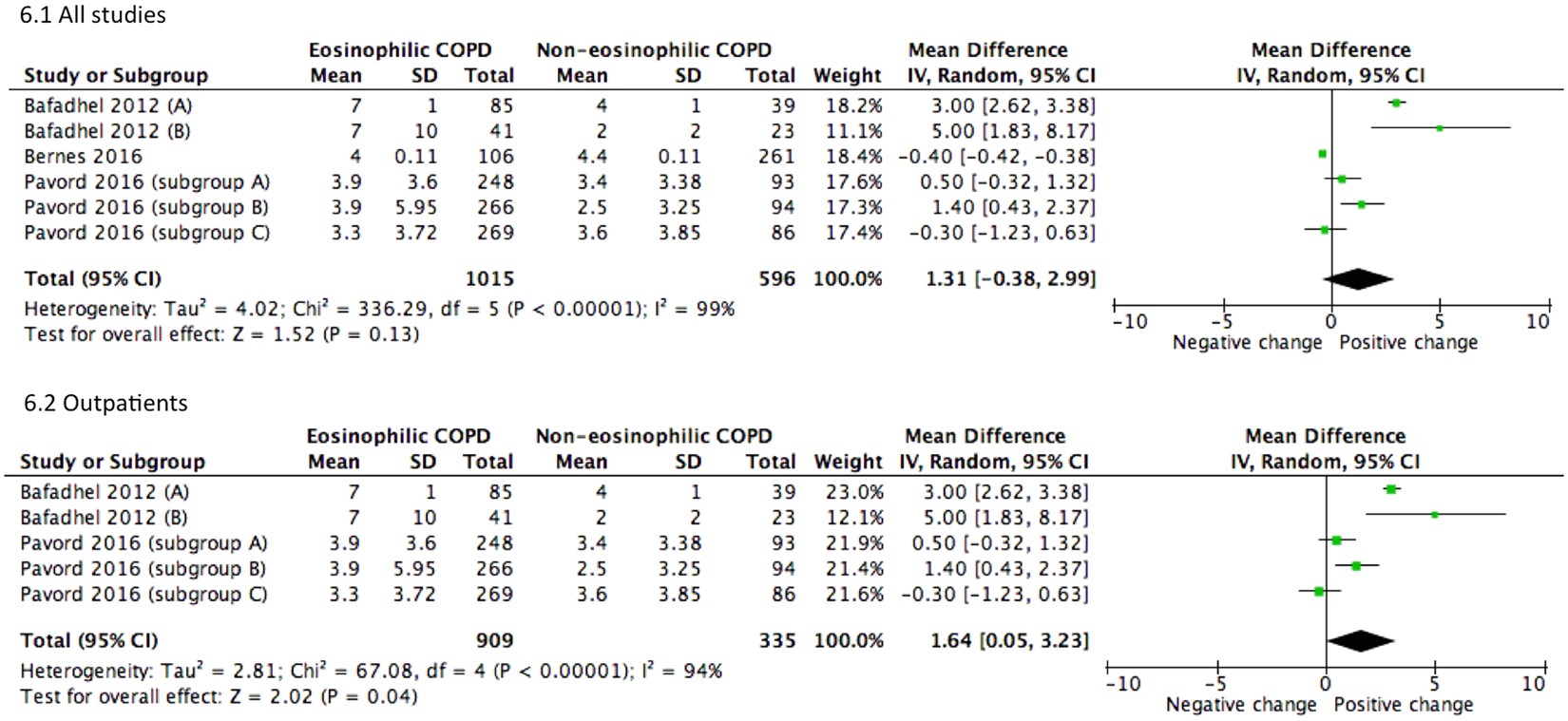

Figure 6
From: Eosinophilia and clinical outcome of chronic obstructive pulmonary disease: a meta-analysis
Forest plots of studies comparing the mean difference of the change of % FEV1 predicted in COPD patients after therapy. Bafadhel (2012) subgroup A, clinical outcomes in 2 weeks after therapy. Bafadhel (2012) subgroup B, clinical outcomes in 6 weeks after therapy. Pavord (2016) subgroup A, COPD patients on fluticasone propionate and salmeterol; Pavord (2016) subgroup B, COPD patients on fluticasone propionate; Pavord (2016) subgroup C, COPD patients on salmeterol.
