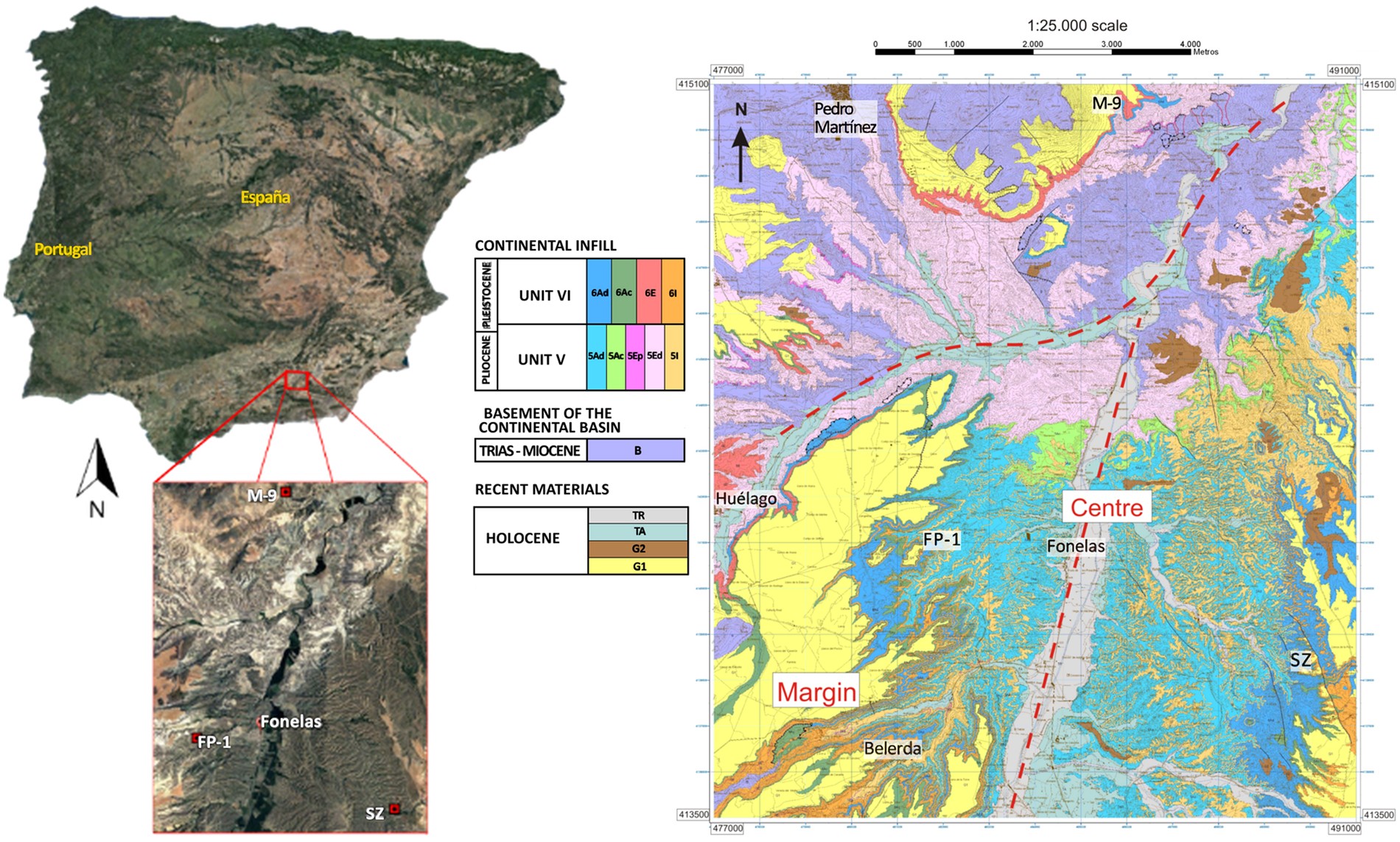

Figure 1

Location of the paleontological sites of Solana del Zamborino (SZ), Mencal (M-9), and Fonelas (FP-1) using Google Earth free program (version 7.1.8.3036. Map data: Google, Digital Globe). The lithostratigraphic map of the Fonelas-Mencal area was created by Pla-Pueyo²⁰ and digitalised using ArcGis 9.1. (http://www.esri.com/arcgis/about-arcgis). An online version of the map can be found in http://hdl.handle.net/10481/2373. Legend: TR, recent terraces; TA, ancient terraces; G2, glacis 2; G1, glacis 1; 5Ad, luddites, sands and gravels (locally palustrine carbonates), Detrital Axial System; 5Ac, palustrine-lacustrine limestones (locally tufa), Axial System carbonates; 5Ep, blocks and gravels, Proximal External Transverse System; 5Ed, sands, shales and gravels, distal External Transverse System; 5I, gravel, sand and shale (locally palustrine-calcrete carbonates), External Transverse System; 6Ad, sands and shales (locally palustrine-lacustrine carbonates), Detrital Axial System; 6Ac, palustrine-lacustrine carbonates (locally shale), Carbonate Axial System; 6E, breccia, gravel, sand and shale, External Transverse System, 6I, gravel, sand and shale, External Transverse System; B, basement.
