Figure 10
From: MultiFLEXX - The new multi-analyzer at the cold triple-axis spectrometer FLEXX

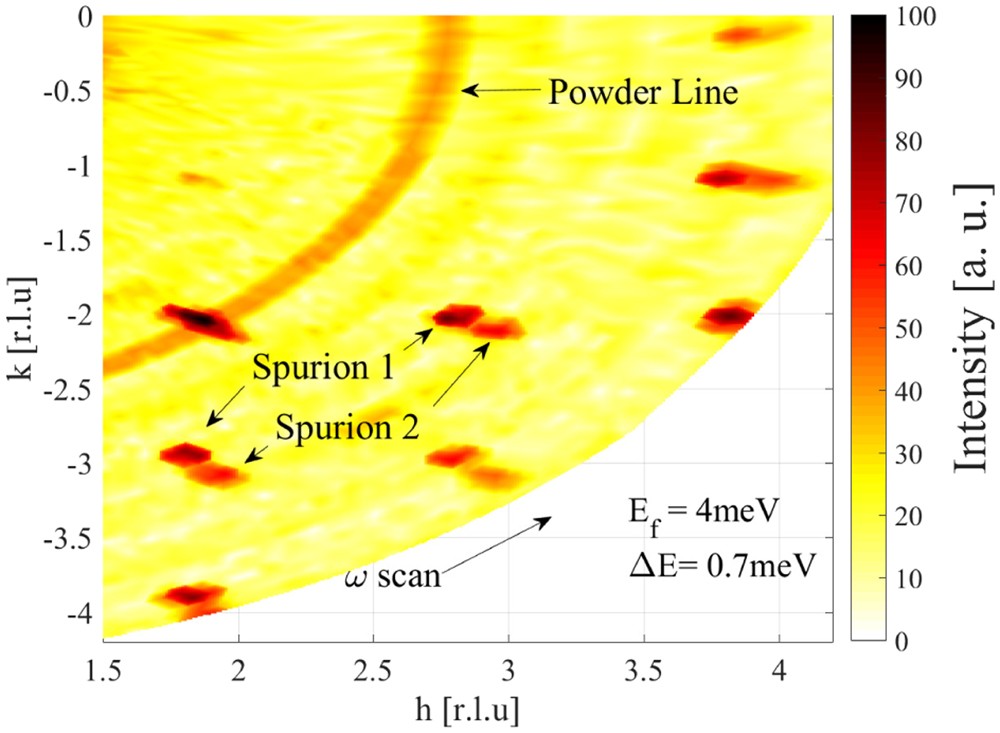

Constant energy map for PbCuTe2O6 at an energy transfer of 0.7 meV, taken with the penultimum energy channel E f = 4 meV. The color scale represents neutron counts in 5 min.
