Figure 5
From: Nacre-mimic Reinforced Ag@reduced Graphene Oxide-Sodium Alginate Composite Film for Wound Healing

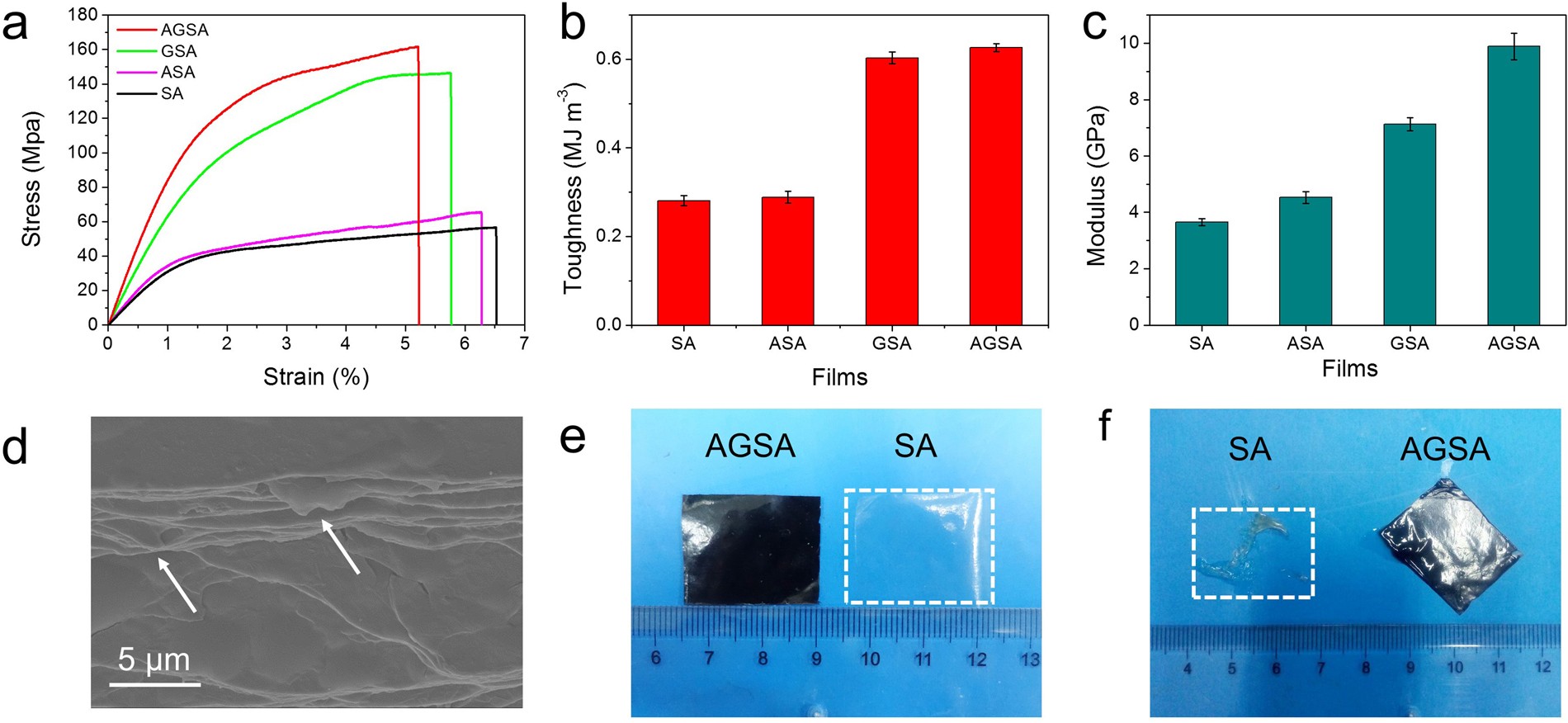

Mechanical test results of the as-prepared films. Stress-strain curves (a), Toughness (b) and Young’s modulus (c) of the different films; (d) Fractural morphology of AGSA film (White arrows refer to pulling out of the Ag@rGO sheets); (e) Pictures of AGSA and SA films before immersing in water; (f) Pictures of AGSA and SA films after immersing in water. Error bars are standard deviation, n ≥ 5.
