Figure 11
From: Silicon Photonics Transmitter with SOA and Semiconductor Mode-Locked Laser

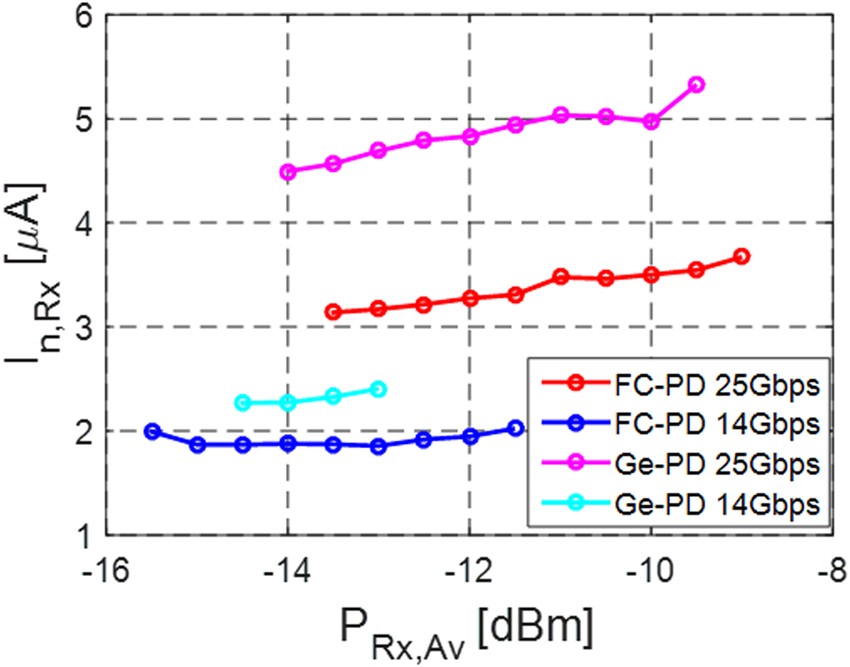

Input referred Rx noise for the FC-PD and Ge WPD photoreceivers at 14 and 25 Gbps as a function of the average Rx input power (measurement done with an extinction ratio of over 50 dB).
