Figure 5
From: Silicon Photonics Transmitter with SOA and Semiconductor Mode-Locked Laser

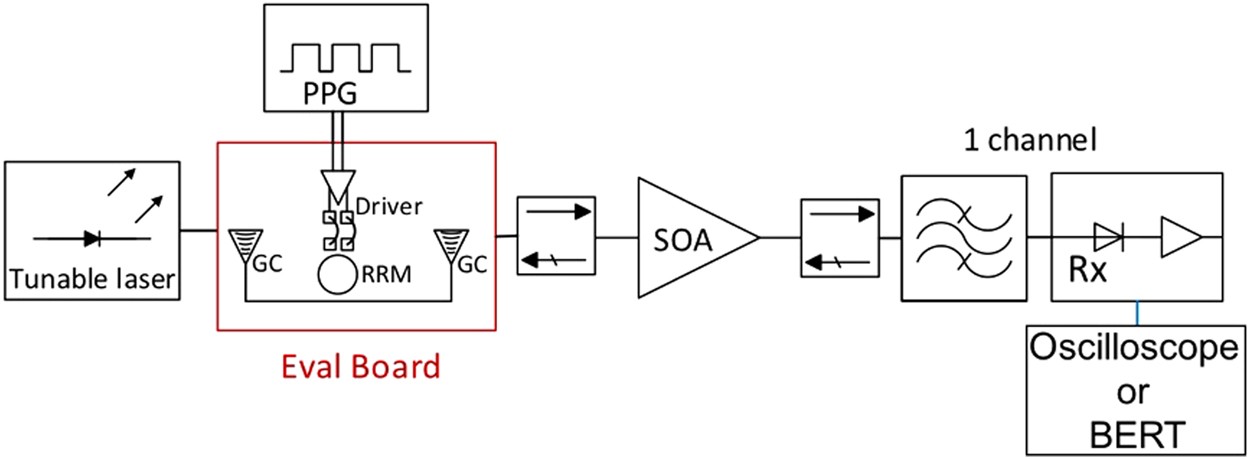

Test setup including the evaluation board with RRMs wire bonded to the modulator driver chip and commercial SOA. As previously, isolators are placed before and after the SOA.
