Figure 7
From: Silicon Photonics Transmitter with SOA and Semiconductor Mode-Locked Laser

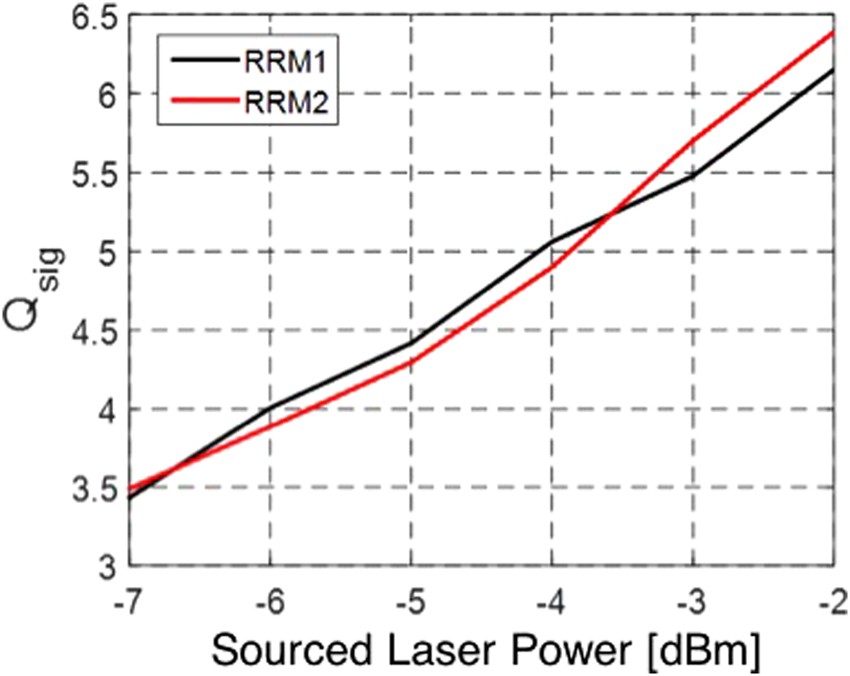

Comparison of the Q-factor measured at 25 Gbps as a function of sourced laser power for RRM1 and RRM2. RRM1 was directly probed with high-speed probe tips, while RRM2 was wire bonded to the chip-scale driver.
