Figure 8
From: Silicon Photonics Transmitter with SOA and Semiconductor Mode-Locked Laser

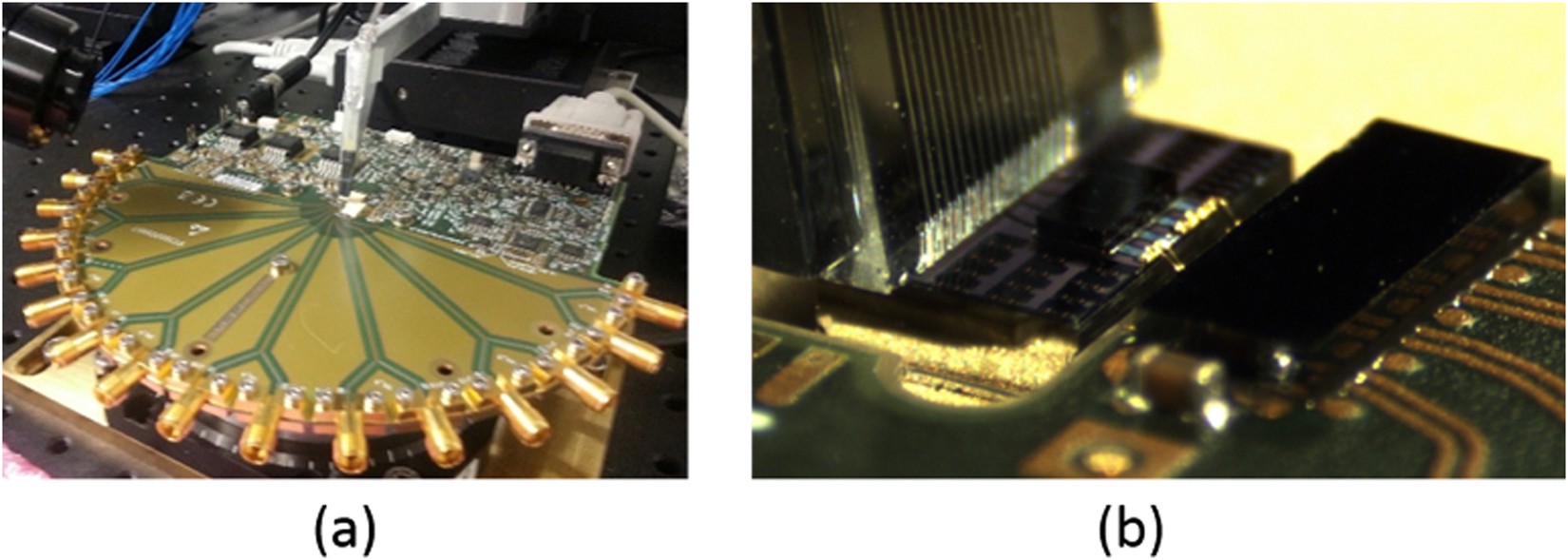

(a) Photograph of the Rx evaluation board. (b) Photograph of the SiP chip with FC-PD. The SiP chip is mounted on the evaluation board and wire bonded to the TIA + LA chip.
