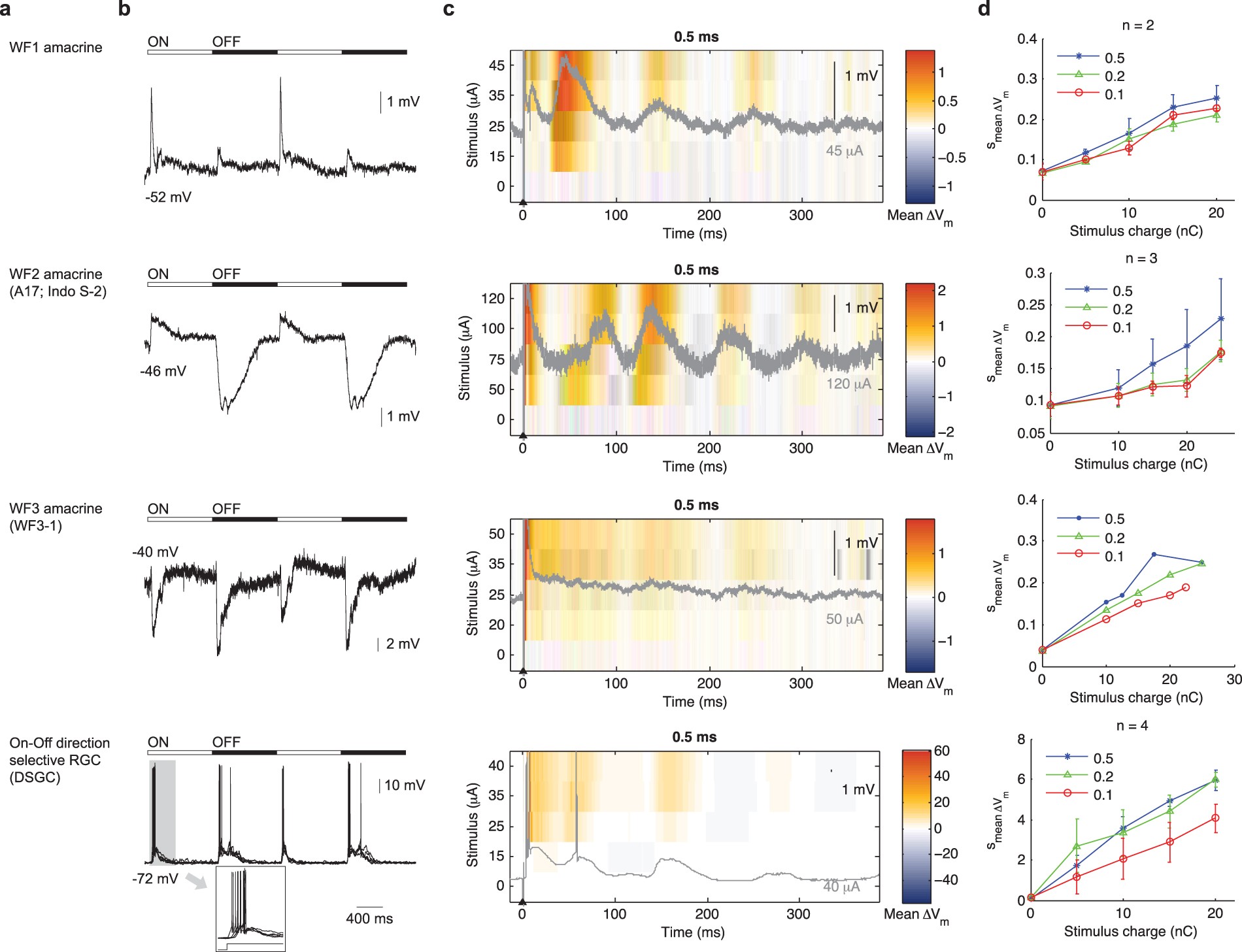

Figure 4
Light- and electrically-evoked responses of wide field amacrine cells (dendritic arbor >400 µm) and direction selective ganglion cells (DSGC). (a) Cell type name. (b) Light evoked responses. (c) Stimulus-time plot of electrically evoked responses. (d) Average Vm perturbation as a function of pulse width and pulse amplitude. See Fig. 1 legend for further details.
