Figure 2
From: Origins of Common Neural Inputs to Different Compartments of the Extensor Digitorum Communis Muscle

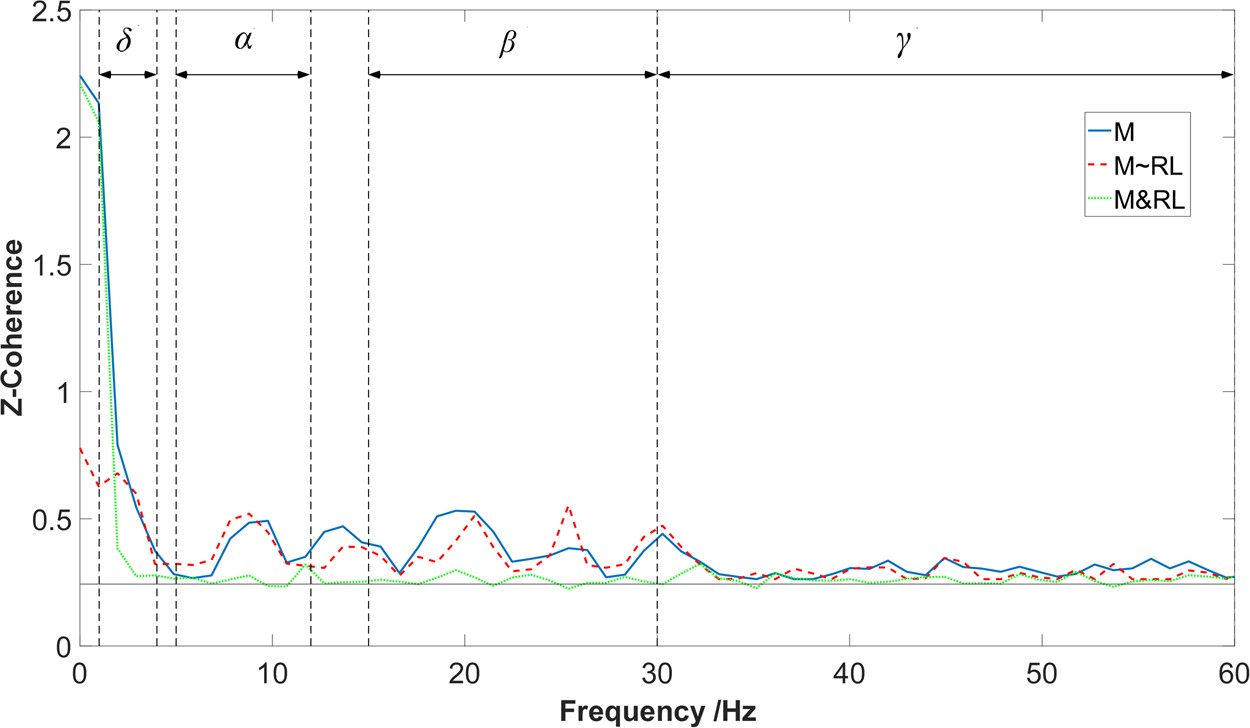

An example of the different coherence calculations from a representative subject. The solid blue line represents the total coherence of middle finger (M); the red dashed line represents the partial coherence residual of middle finger after removing any synchrony generated from ring-little finger (M ~ RL); and the green dotted line represents the cross-compartment coherence of middle and ring-little fingers (M&RL). The horizontal line shows the 95% confidence interval.
