Figure 3
From: Origins of Common Neural Inputs to Different Compartments of the Extensor Digitorum Communis Muscle

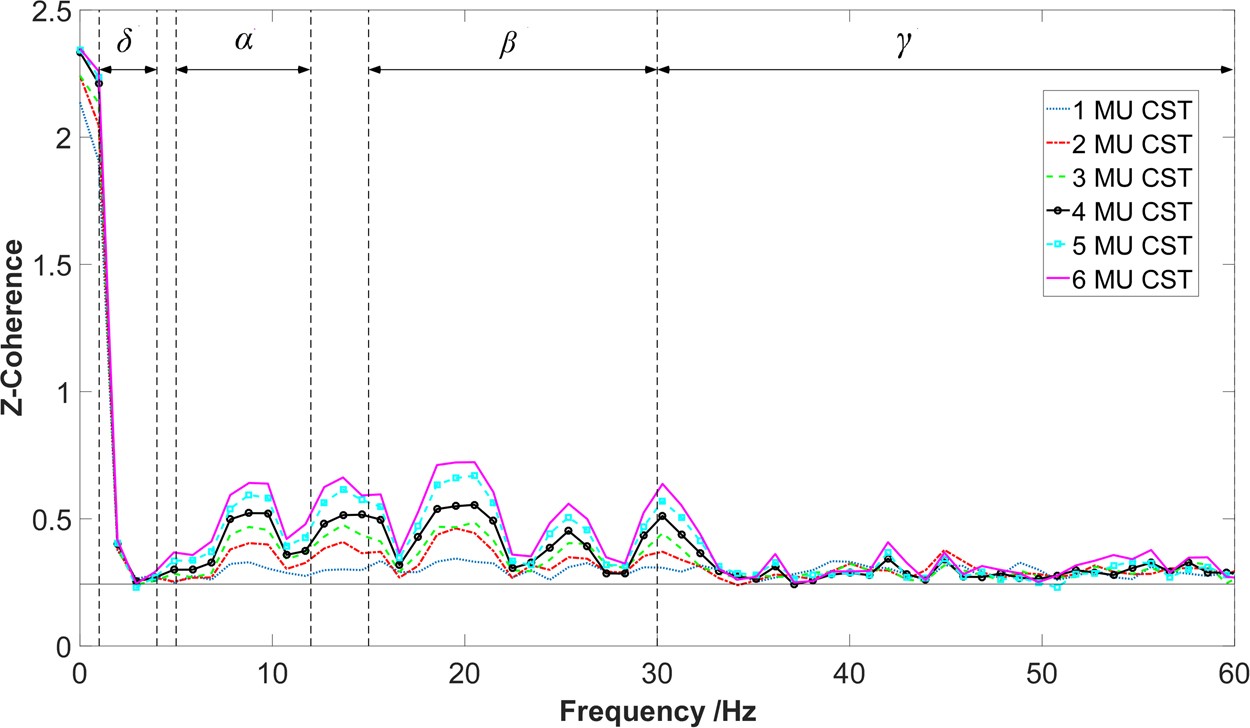

An exemplar of coherence estimate for the number of spike trains vs. magnitude of coherence. Different lines present different number of MUs. MU CST represents motor unit composite spike train. Note: the example trial with the most ripples was selected in order to show the monotonically increasing tendency of the coherence values that were above the baseline, as the number of motor units increased.
