From: Microparticles controllable accumulation, arrangement, and spatial shaping performed by tapered-fiber-based laser-induced convection flow

Figure 3

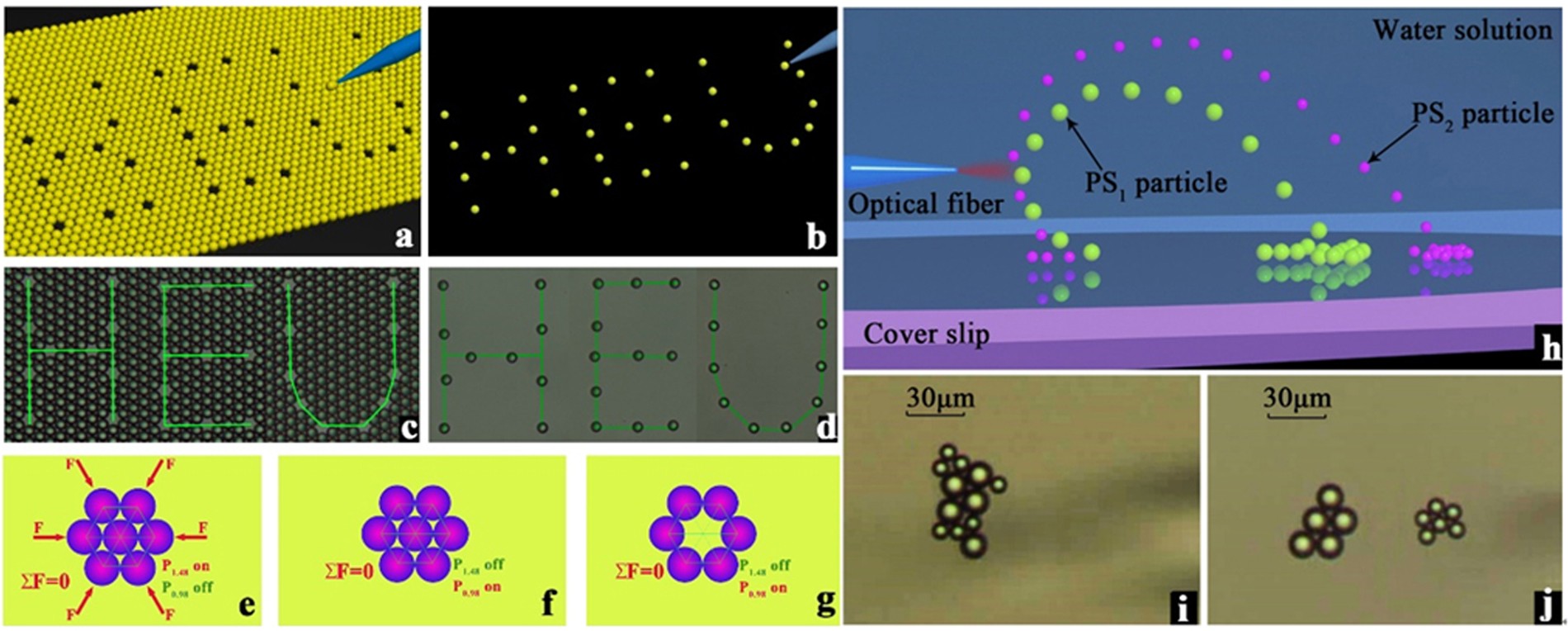

Experimental results. (a), (b) Schematics and (c), (d) Images of the especially spatial shaped arrangement of the microparticles combined with the optical tweezers technology; (e–g) Schematics of the net forces exerting on an arranged unit (j) Schematics of microparticles sorting principle and (k), (l) images of the microparticles sorting.
