Figure 7
From: Ferroelectric thin film acoustic devices with electrical multiband switching ability

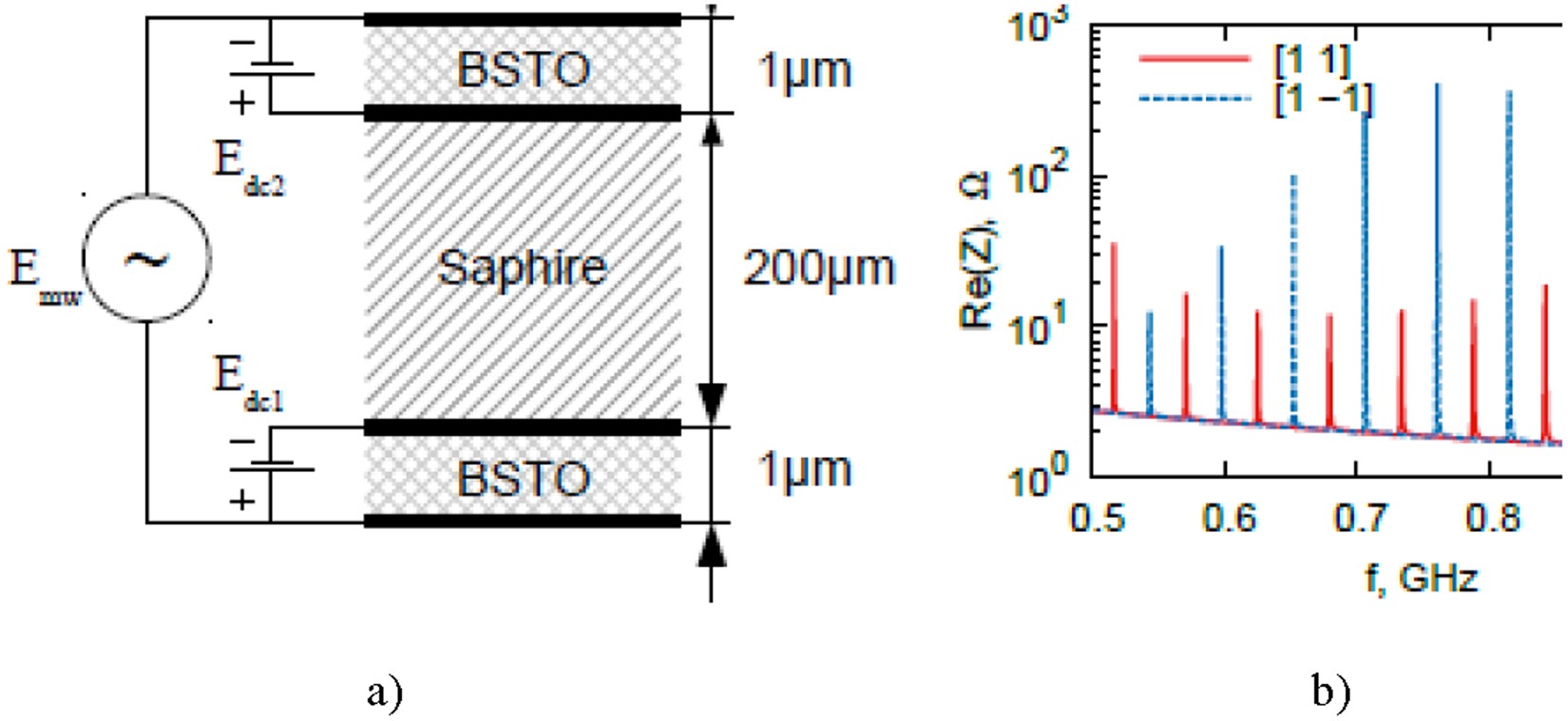

Schematic of high overtone bulk acoustic resonator (a), and its frequency spectrum at the same ([1 1]) and opposite ([1–1]) bias polarities on ferroelectric layers (b).
