Figure 2 | Scientific Reports

Figure 2

From: Therapeutic effects of hepatocyte growth factor-overexpressing dental pulp stem cells on liver cirrhosis in a rat model

Figure 2

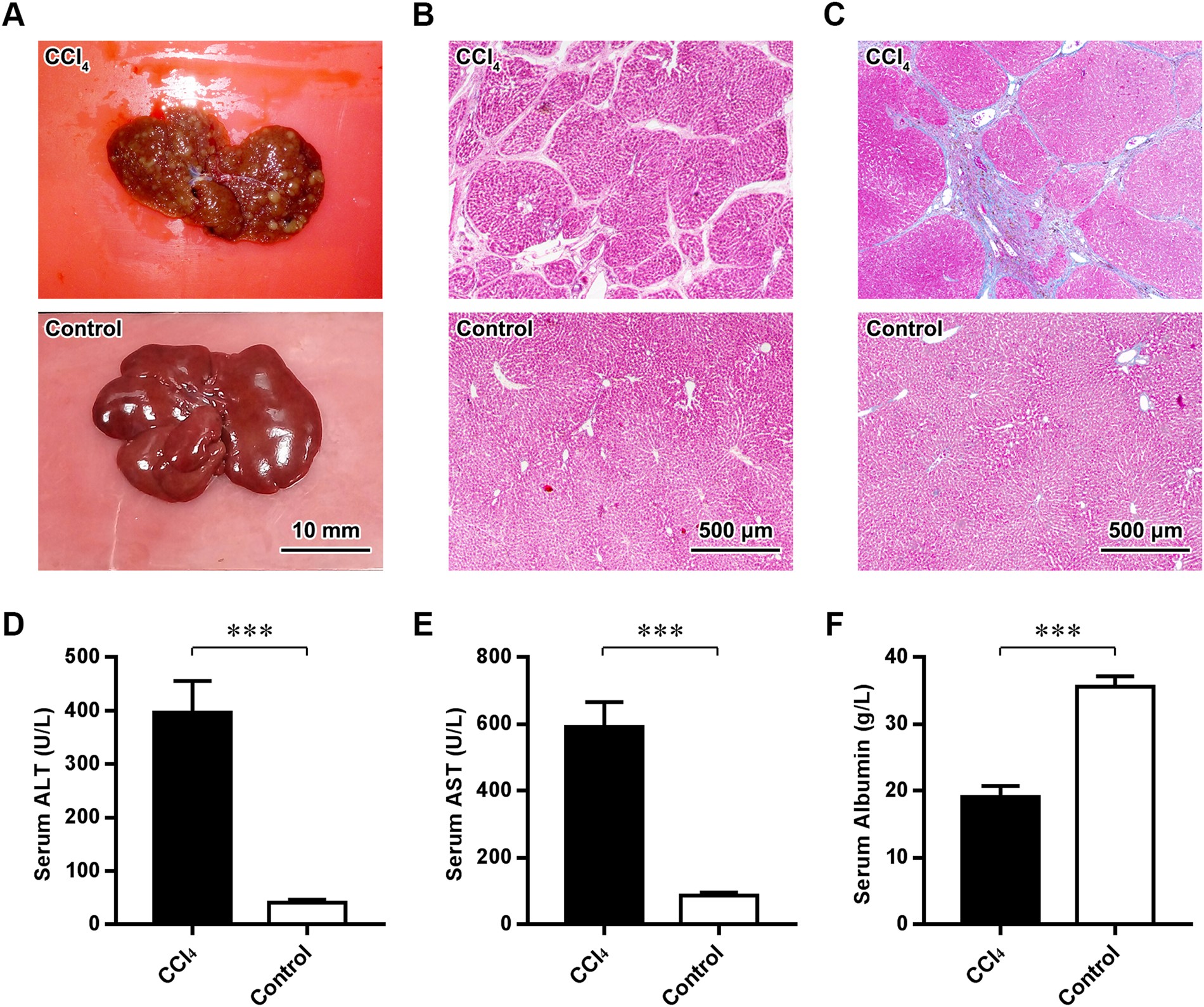

Rat model of liver cirrhosis. (A–C) Gross observations (A), HE staining (B) and Masson’s trichrome staining of the livers of rats in the CCl4 and Control groups. Scale bars (A) = 10 mm; (B,C) = 500 μm. (D–F) ELISA of the serum ALT, AST and albumin levels of rats in the CCl4 and Control groups. ***P < 0.001.
