Figure 4

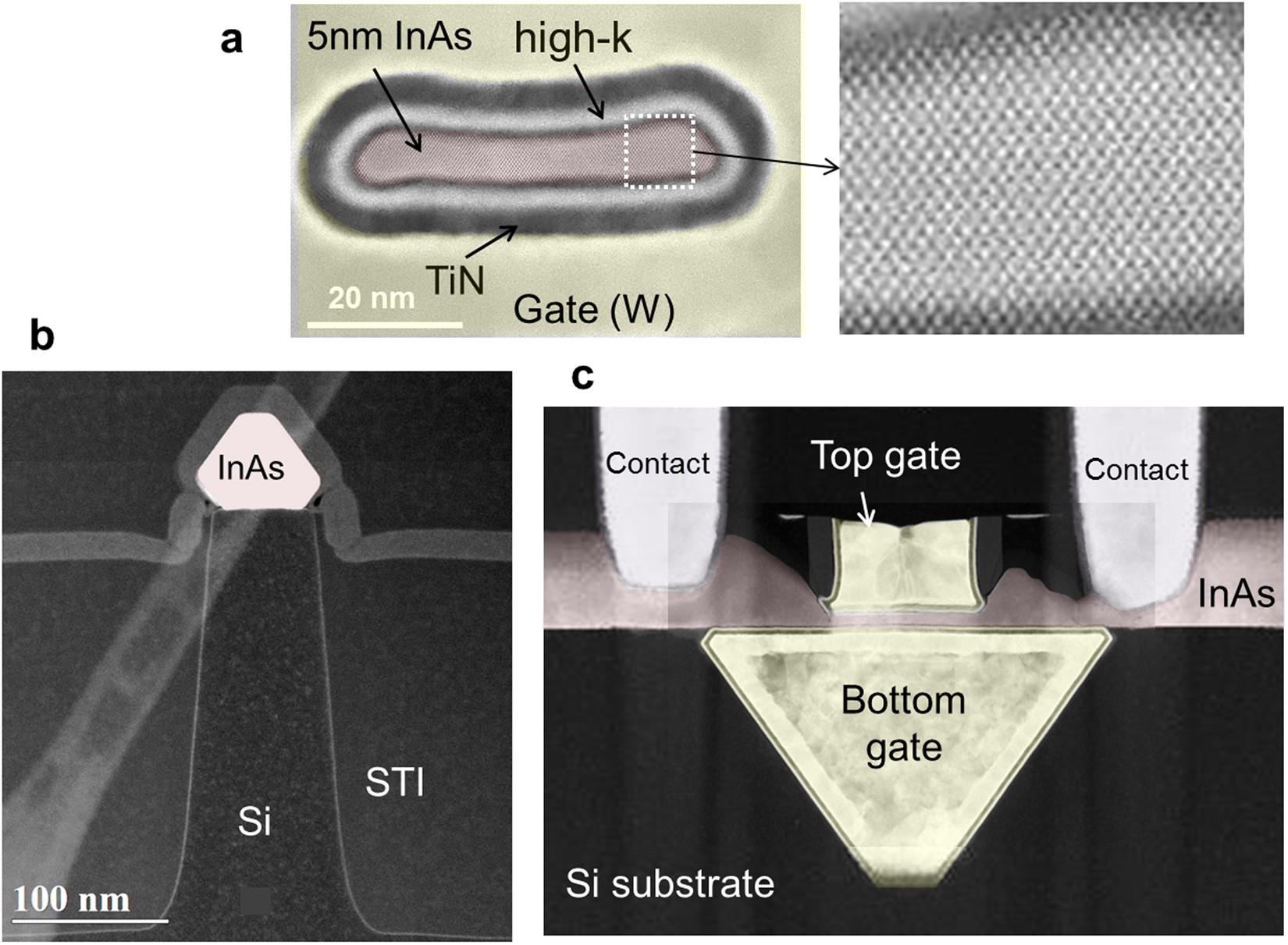

STEM cross sectional images of fabricated NW FETs with InAs channel grown in a wide-field of micrometer size directly on Si(100). (a,b) STEM image perpendicular to the NW in the gate and source/drain areas, respectively. (c) TEM image along the NW showing gate, source, and drain contacts.
