Figure 6
From: Spatial Distribution of Carbon Stored in Forests of the Democratic Republic of Congo

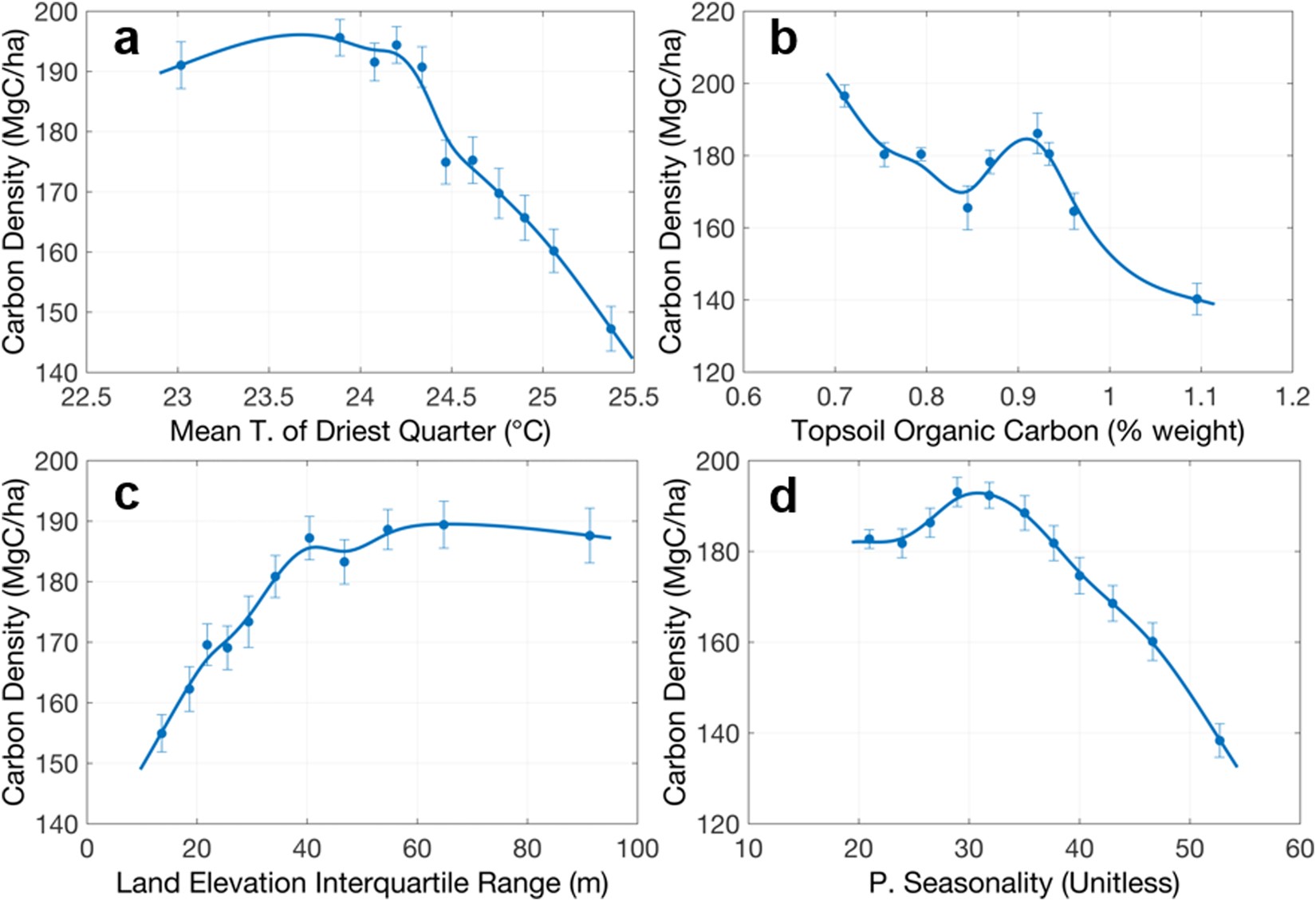

Selected mean relationships between carbon density and environmental variables in humid tropical forests in DRC. Panels show carbon density vs. (a) mean temperature of driest quarter, (b) topsoil organic carbon, (c) land elevation variation, and (d) precipitation seasonality. The plots show the relationships between mean values within each interval of environmental variables. The errorbar associated with carbon density is the standard error of mean estimation from bootstrapping samples. See Supplementary Methods for detailed data description.
