Figure 8
From: Specific Targeting of Melanotic Cells with Peptide Ligated Photosensitizers for Photodynamic Therapy

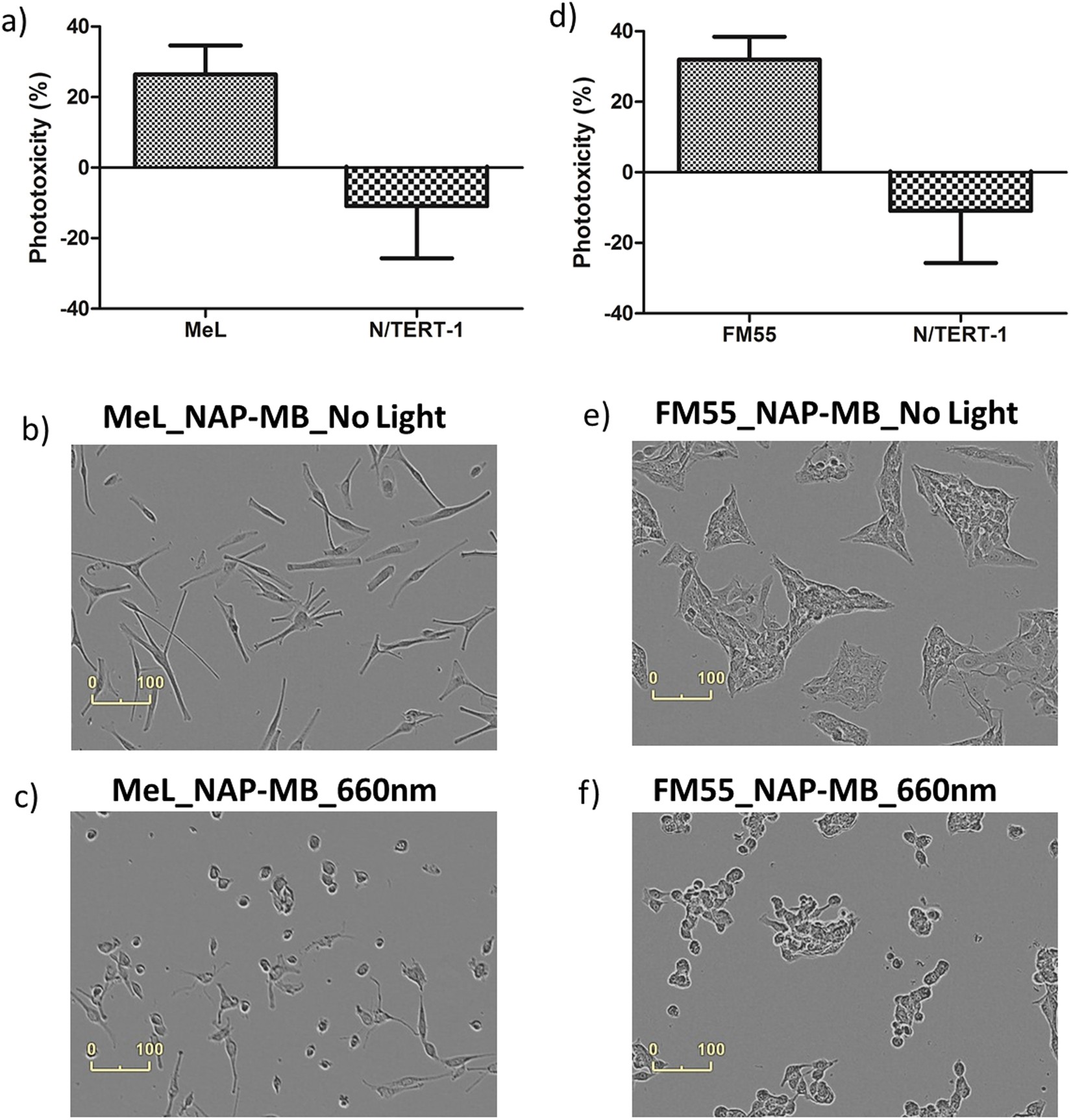

Phototoxicity (%) of NAP-MB (1 µM) with (a) MeL & N-TERT-1 and (d) FM55 & N/TERT-1 measured by SRB colorimetric assay. Incucyte cell growth image for MeL after 24 h: (b) no light, (c) 660 nm light and for FM55: (e) no light, (f) 660 nm light.
