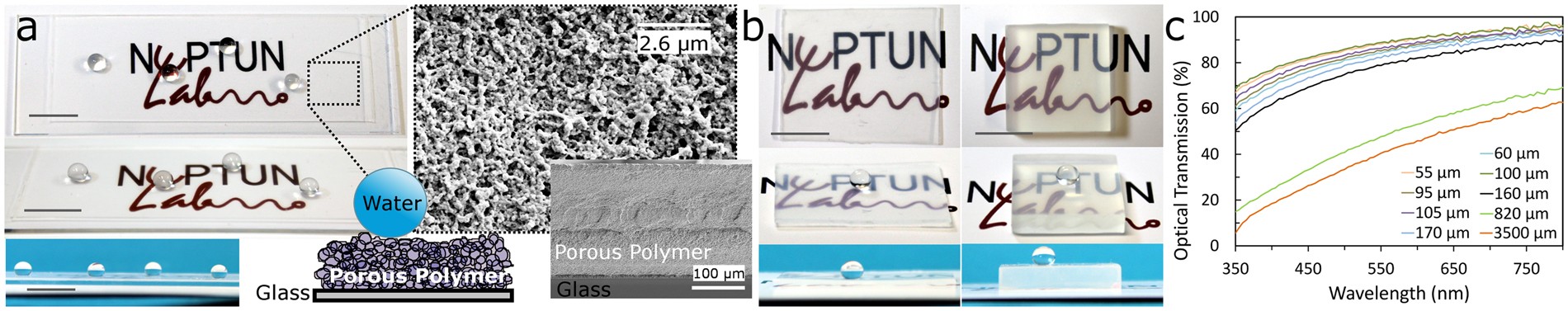

Figure 1
From: Transparent, abrasion-insensitive superhydrophobic coatings for real-world applications
Transparent, bulk nano-/microstructured polymer foam “Fluoropor”. (a) Thin-layer (105 µm) optically transparent Fluoropor film on glass with superhydrophobic properties. The SEM images show the porous nano-/microstructure of the material on the surface and in the bulk (side view of a 210 µm coating on glass). (b) Fluoropor bulk nano-/microstructured samples of 820 µm and 3500 µm thickness. (c) Optical transmission of Fluoropor samples with varying average thicknesses between 55 µm and 3500 µm. All scale bars: 1 cm. Optical transmissions were measured against a blank of the supporting glass and therefore display the values for the coating only.
