Figure 3
From: Harvesting the Energy of Multi-Polarized Electromagnetic Waves

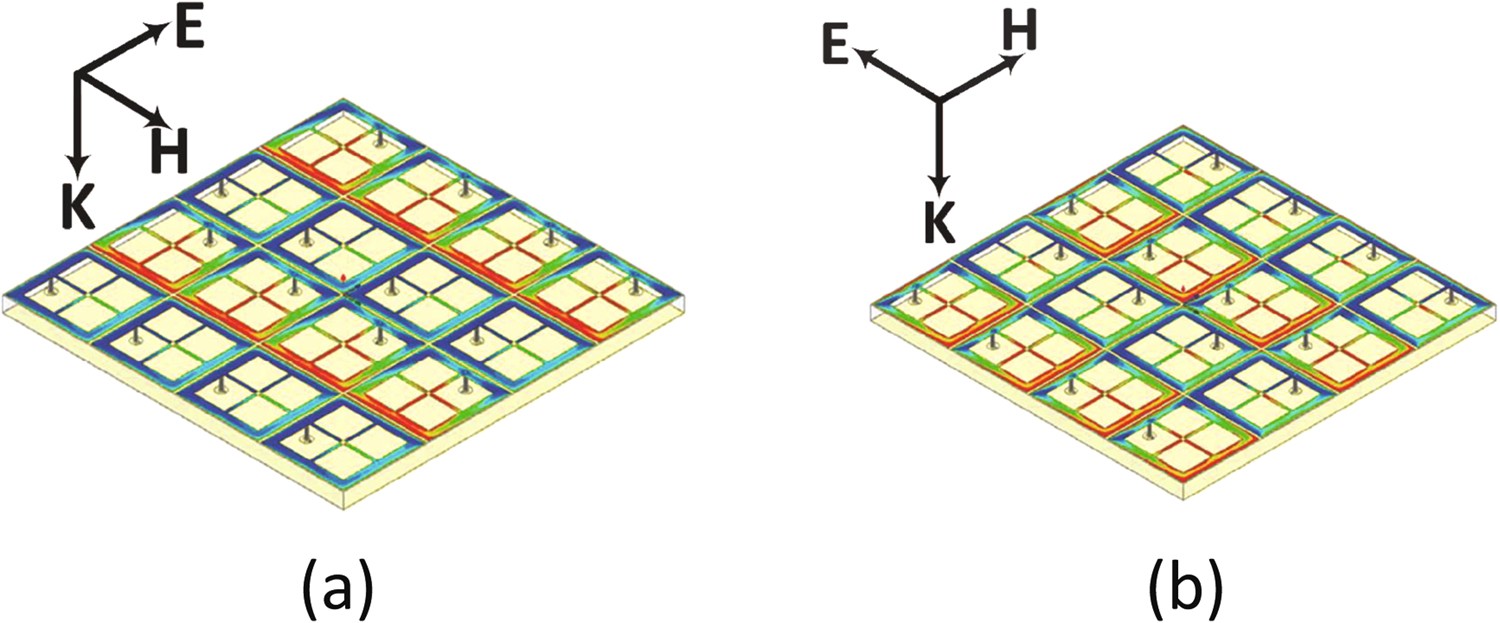

The E-field magnitude plot across the surface of the super cell for (a) polarization 1, and (b) polarization 2. From the plot, the field is pronounced across only 8 cells per polarization as illustrated by the red color.
