From: Combining membrane proteomics and computational three-way pathway analysis revealed signalling pathways preferentially regulated in human iPSCs and human ESCs

Figure 4

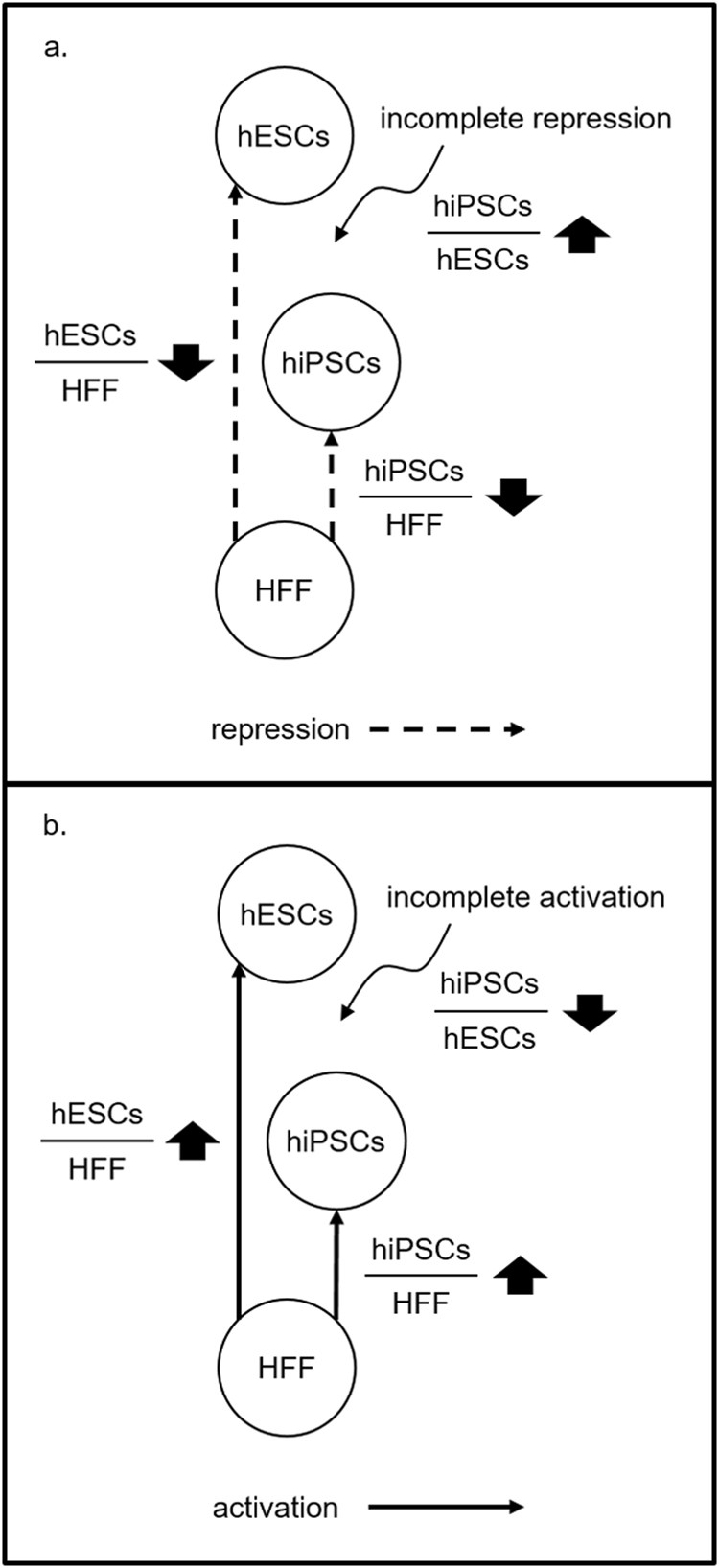

The hypothetical incomplete regulation of pathways during the reprogramming of hiPSCs. (a) Down-regulation in hiPSCs/HFF and hESCs/HFF and up-regulation in hiPSCs/hESCs suggest an incomplete repression of pathways. (b) Up-regulation in hiPSCs/HFF and hESCs/HFF and down-regulation in hiPSCs/hESCs suggest an incomplete activation of pathways.
