Figure 4
From: Brain activation induced by chronic psychosocial stress in mice

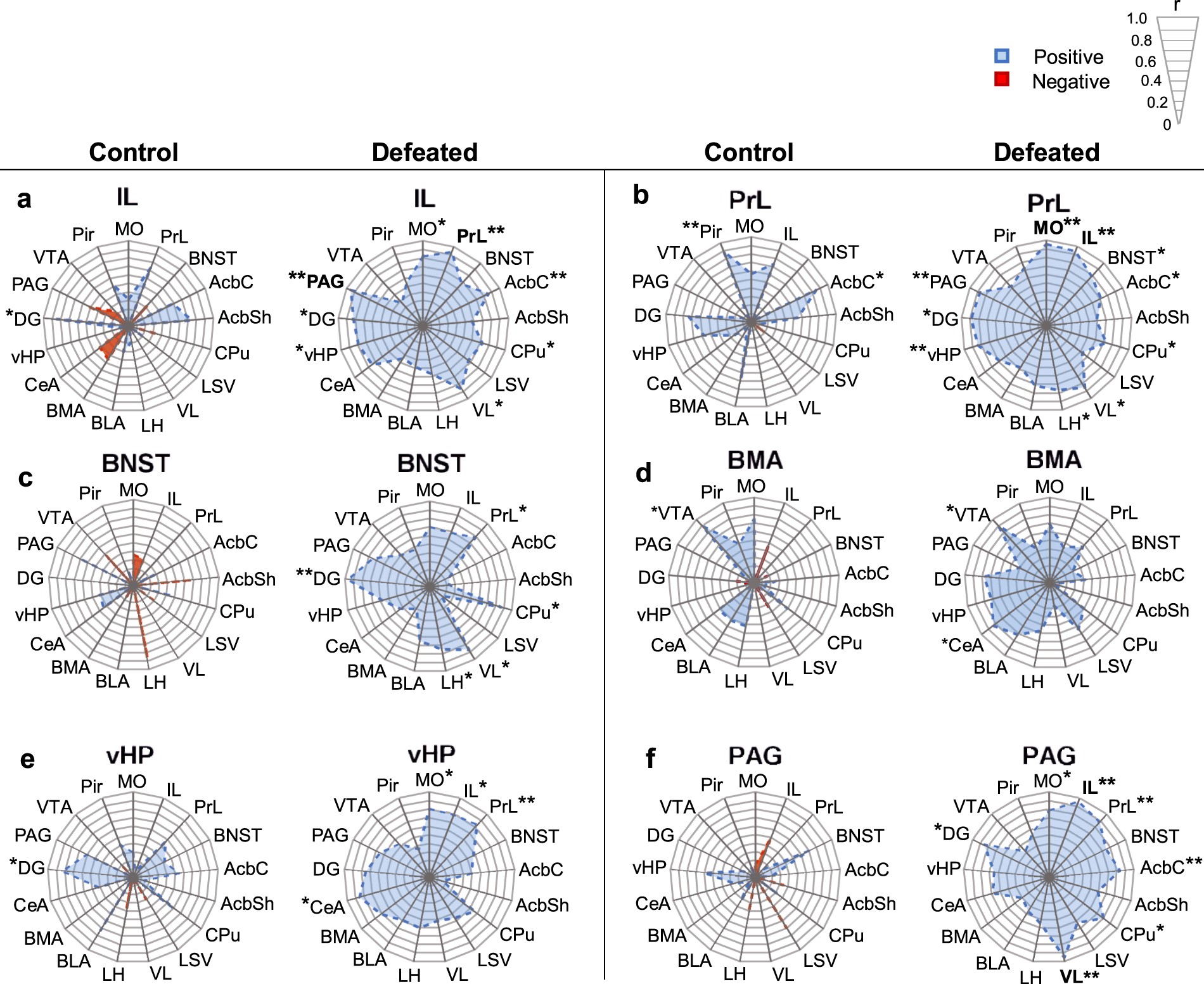

Chronic social defeat stress associates with alterations in ∆FOSB positive cell number correlation profiles of specific brain regions. Radar graphs depict the absolute value of r for the infralimbic cortex (IL, a), prelimbic cortex (PrL, b), bed nucleus of stria terminalis (BNST, c), basomedial amygdala (BMA, d), ventral hippocampus (vHP, e), and periaqueductal grey (PAG, f) comparison of the number of ∆FOSB-positive cells per mm3 with the other brain regions. Figure key indicates the sign and magnitude of r. Regions that correlate significantly with the title region are indicated by an asterisk (*p < 0.05, **p < 0.01), and correlations remaining significant after correction for false discovery rate (<5%) are marked with bold text. See Table 1 for brain region abbreviations.
