Figure 3

From: The positive effects of Xueshuan Xinmai tablets on brain functional connectivity in acute ischemic stroke: a placebo controlled randomized trial

Figure 3

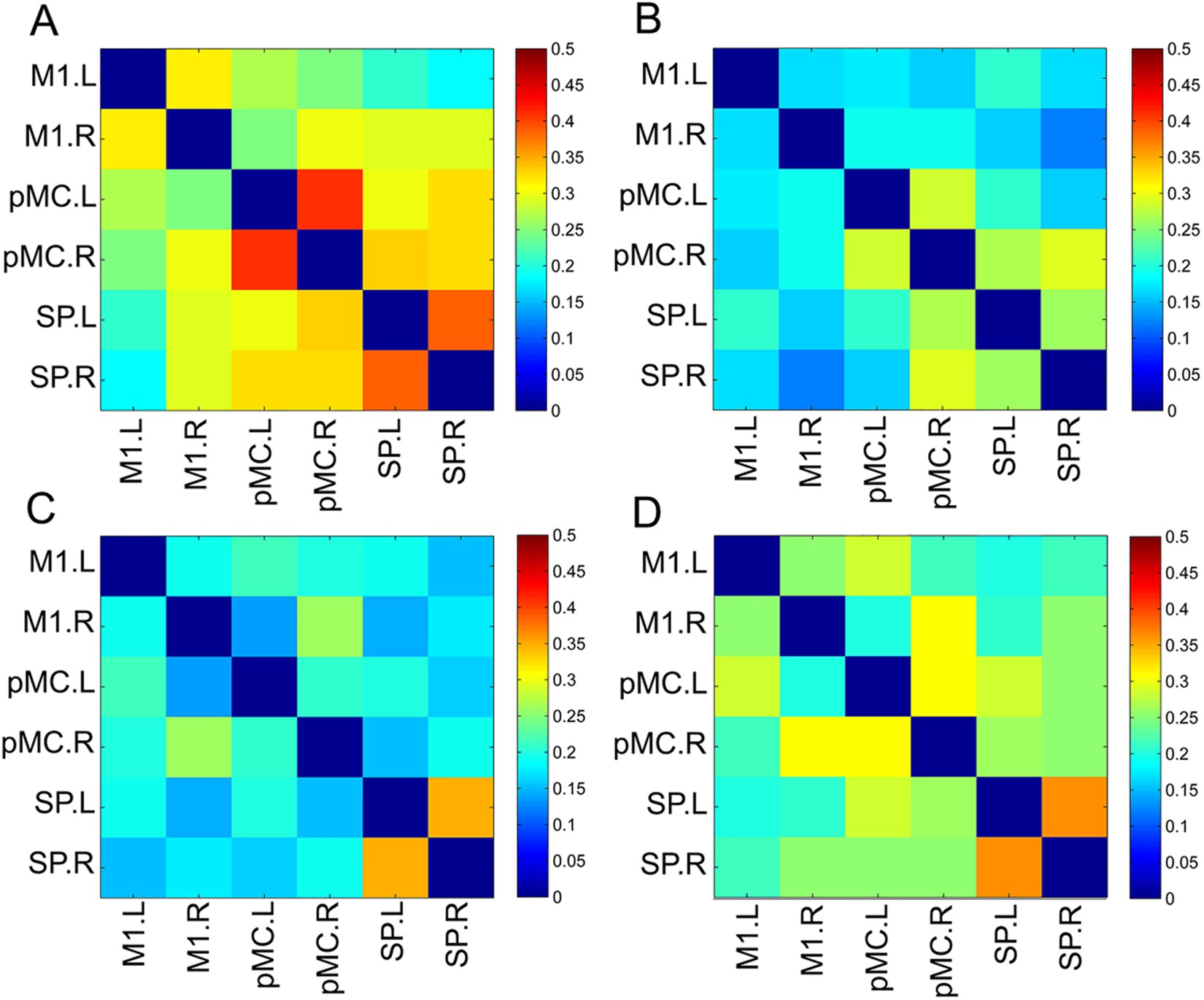

The connection matrices of the six motor-related ROIs in the XXMT treatment group and the placebo group at baseline and at the second visit (2 weeks later) was shown (FDR correction, P < 0.05). (A) placebo-baseline; (B) placebo-2 weeks later; (C) treatment-baseline; D. treatment-2 weeks later. Abbreviation: M1.L, left primary motor cortex; M1.R, right primary motor cortex; pMC.L, left premotor cortex; pMC.R, right premotor cortex; SP.L, left superior parietal cortex; SP.R, right superior parietal cortex.
