Figure 3

From: Tolerogenic dendritic cells are efficiently generated using minocycline and dexamethasone

Figure 3

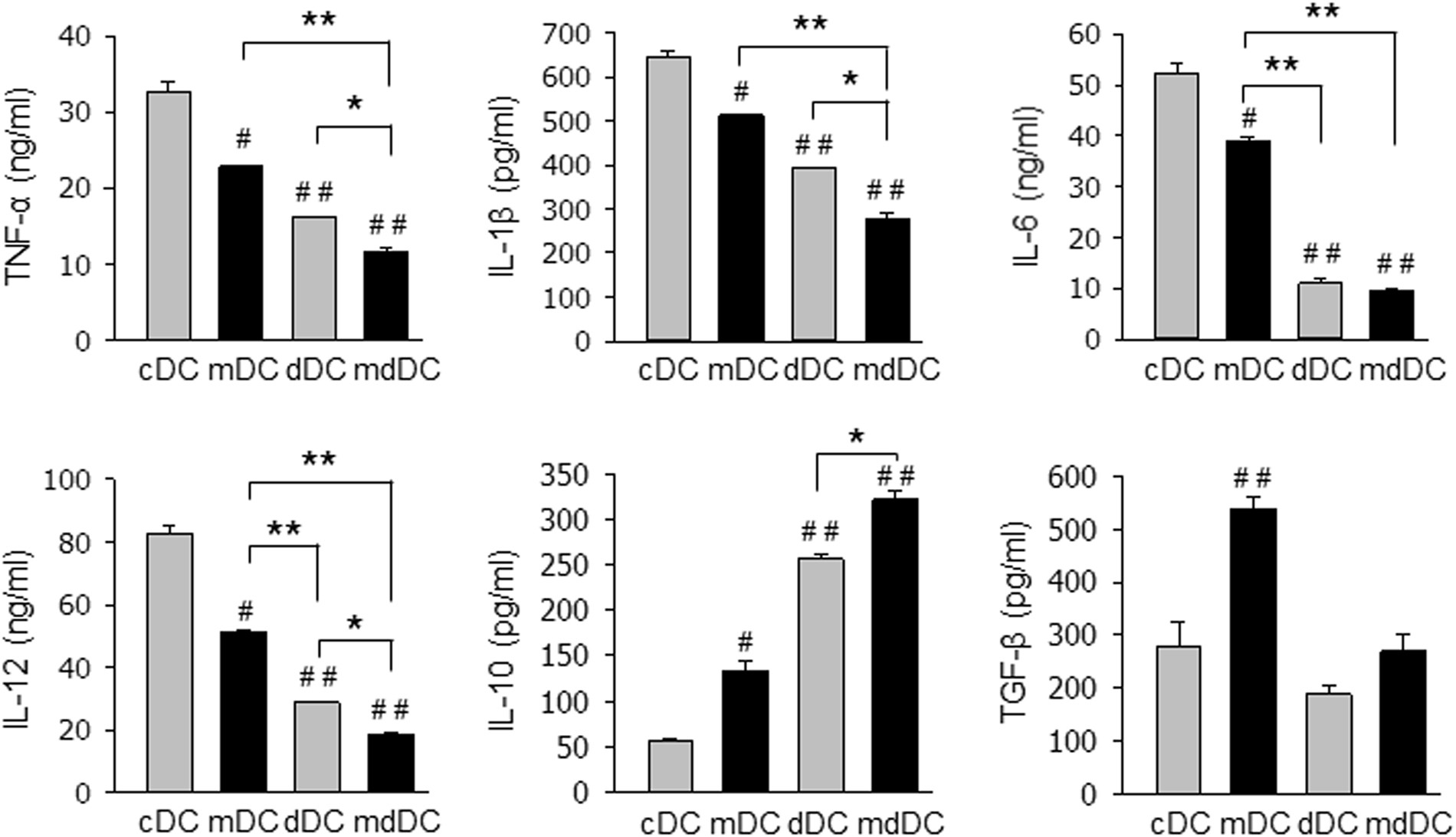

Suppressed cytokine production of minocycline/dexamethasone-conditioned tDCs. DCs (2 × 105 cells/well) were stimulated with LPS for TNF-α production, or IFN-γ plus TNF-α for the other cytokine production, for 24 h, and cytokine secretion in the supernatant was determined by ELISA. The data are presented as the mean ± SD of at least three independent experiments. One way ANOVA tests were performed in order to evaluate significance. #P < 0.05, ##P < 0.01 compared with cDC group. *P < 0.05, **P < 0.01 compared with matched group.
