Figure 2 | Scientific Reports

Figure 2

From: Microelectrode implantation in motor cortex causes fine motor deficit: Implications on potential considerations to Brain Computer Interfacing and Human Augmentation

Figure 2

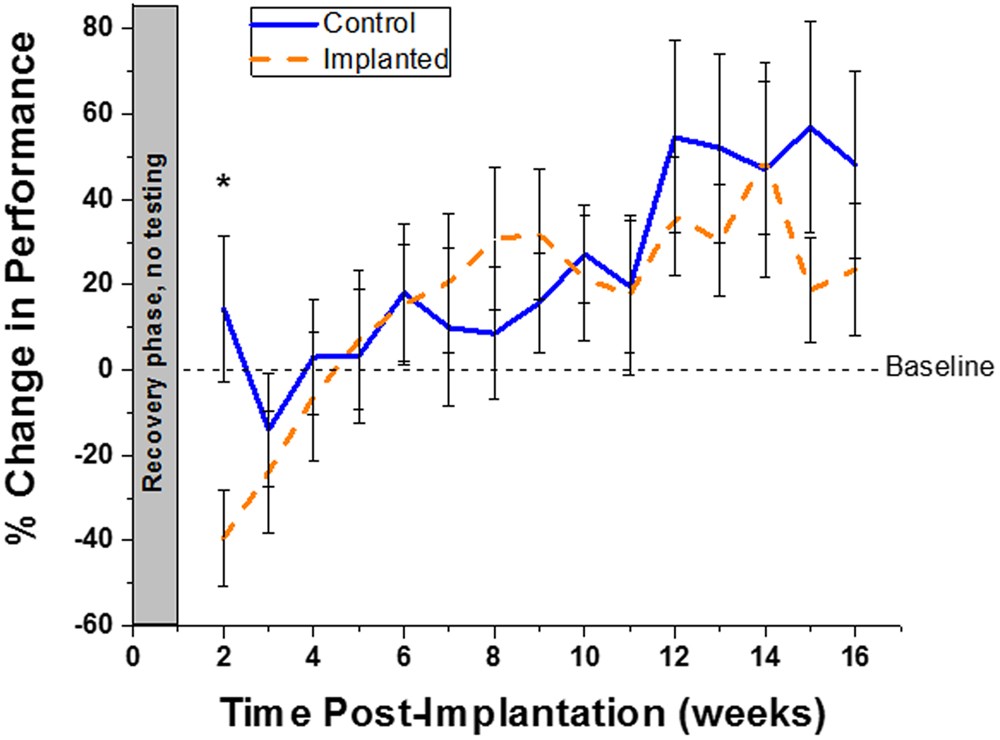

Quantification of gross motor function, assessed via open field grid test performance, compared to baseline. Significant difference was seen between control and implanted animals at 2 weeks post electrode implantation (p < 0.05). % change in performance = \(\frac{(baseline\,grid\,lines\,crossed\,-weekly\,test\,grid\,lines\,crossed)}{baseline\,grid\,lines\,crossed}\ast (100)\). All error reported as SEM.
