Figure 5 | Scientific Reports

Figure 5

From: Microelectrode implantation in motor cortex causes fine motor deficit: Implications on potential considerations to Brain Computer Interfacing and Human Augmentation

Figure 5

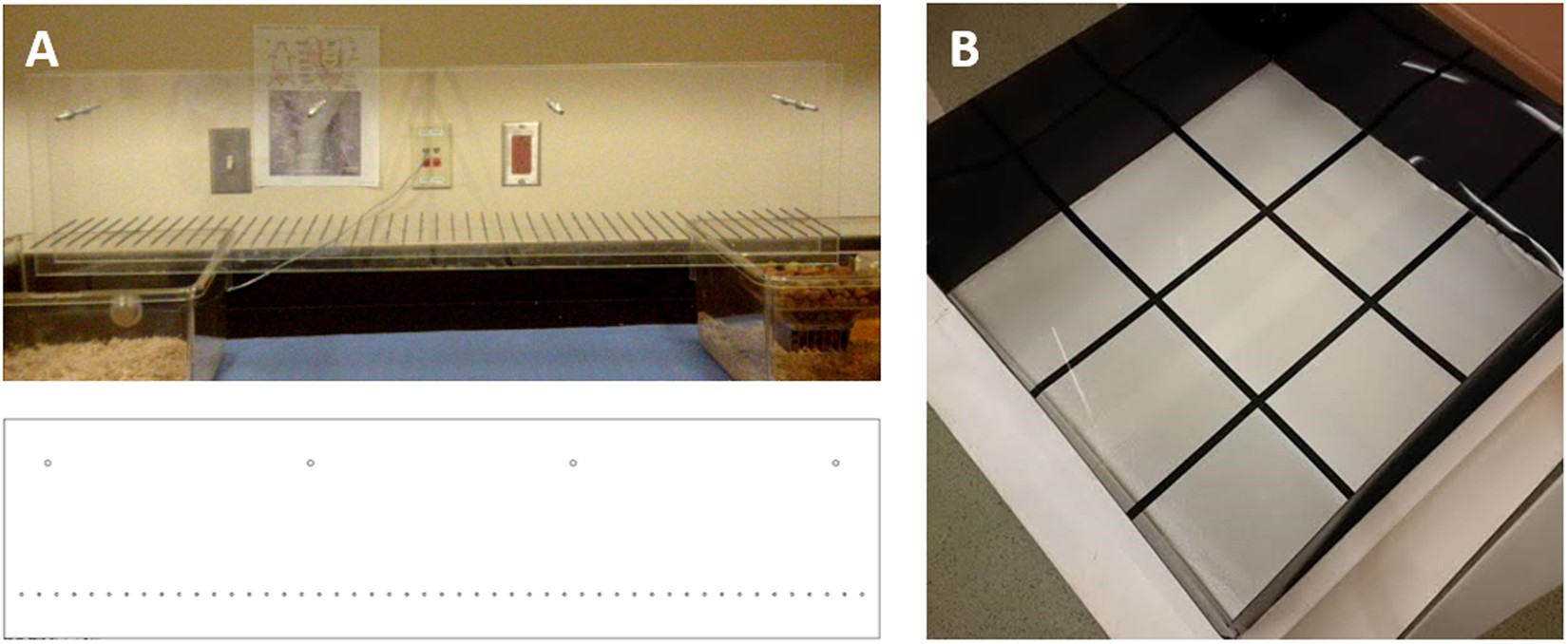

Behavioral testing setups for (A) ladder test (fine motor skill) and (B) open field grid test (gross motor task and anxiety). The ladder consisted of two clear acrylic walls, each 1 m in length and 25 cm in height, connected by stainless steel rungs spaced at 2 cm with 3 mm diameter. The open field grid test consisted of a 36 in2 acrylic sheet with four opaque walls of height 15 cm, and square bottom sections of 12 in each.
