Figure 7
From: α subunits in GABAA receptors are dispensable for GABA and diazepam action

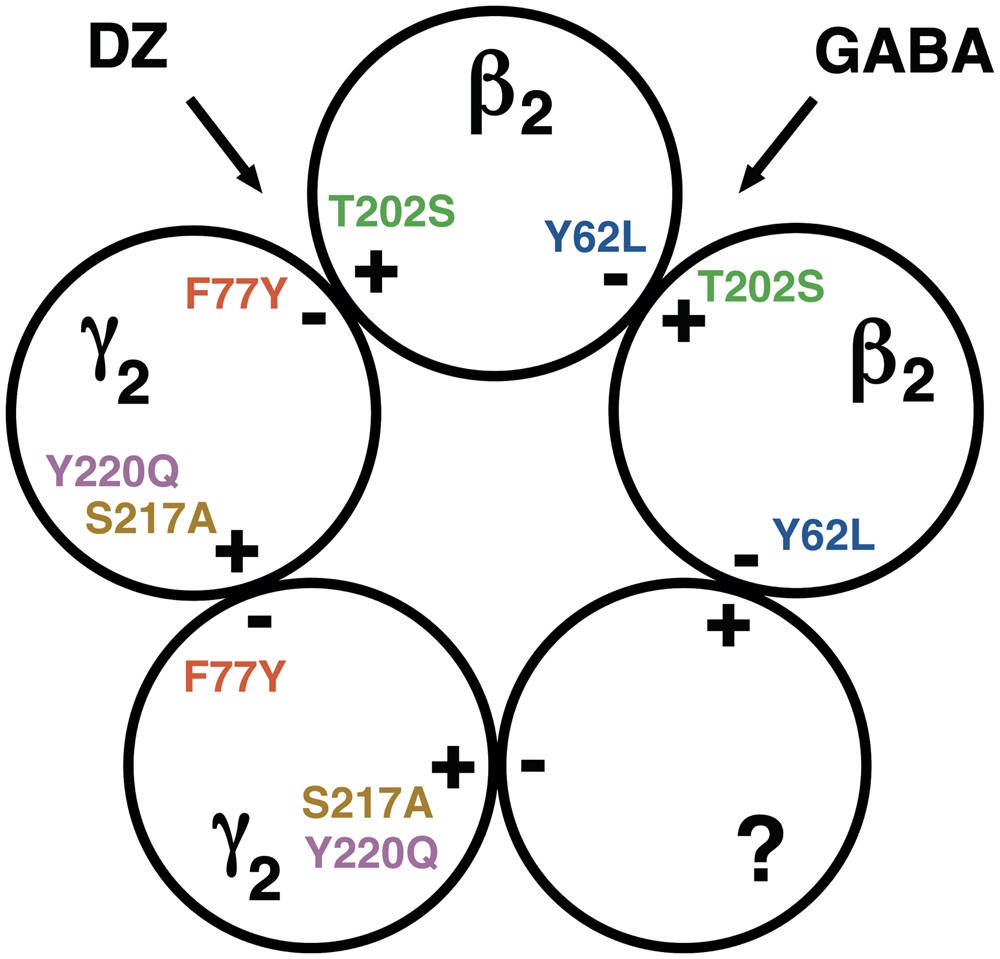

Schematic representation of β2γ2 GABAA receptors. The location of amino acid residues of interest is indicated. Point mutations resulting in disrupting assembly are not shown. The binding site for GABA is concluded to locate at the β2+/ β2− interface, that for diazepam at the β2+/γ2− interface. Please note that the subunit arrangement was not addressed in this study.
