Figure 4
From: Network-based analysis of diagnosis progression patterns using claims data

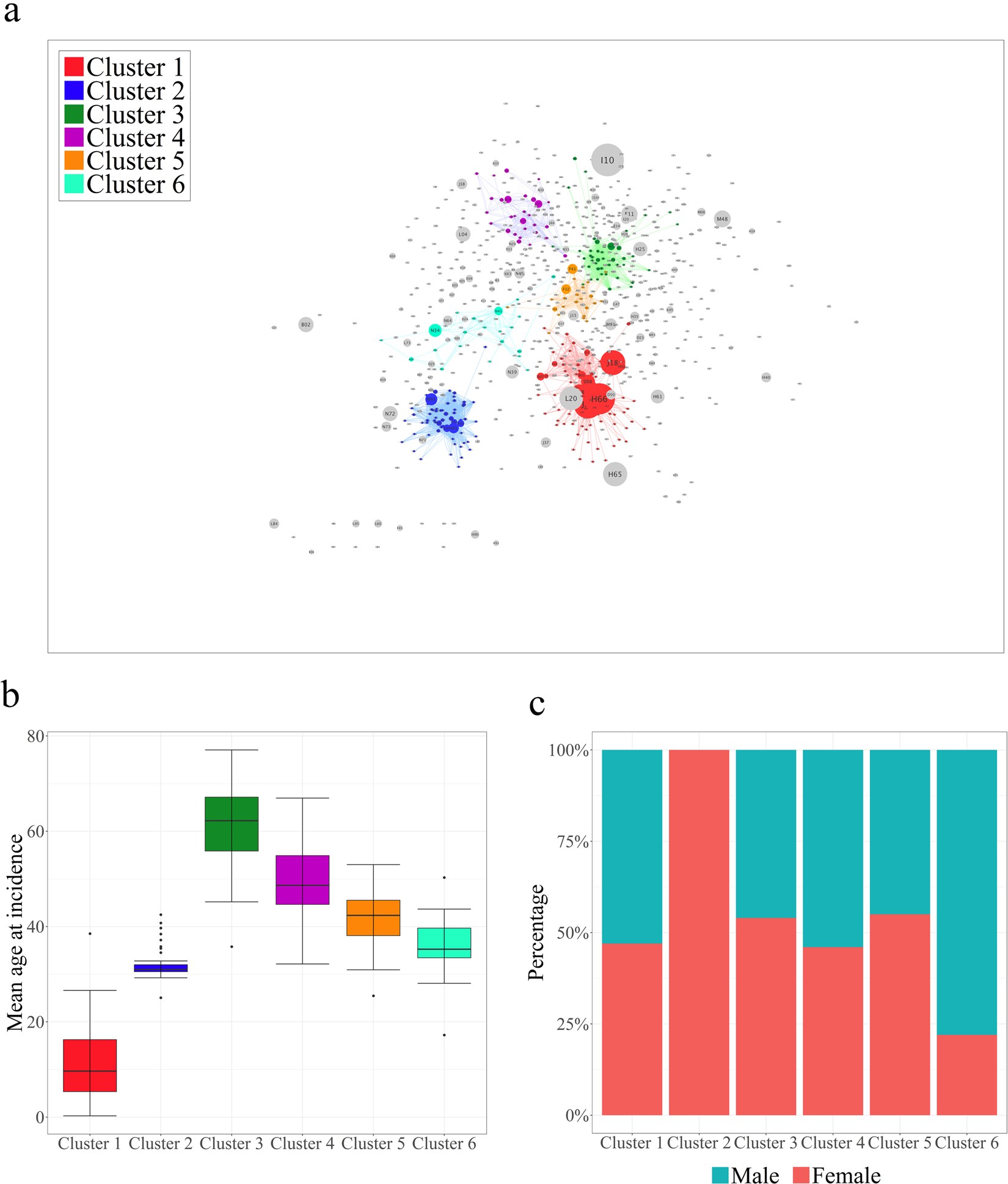

The results of community detection in the DPN using the Infomap algorithm. (a) Graphical view of 6 giant clusters detected by the Infomap algorithm. (b) Boxplot of the mean age at incidence for each of the 6 giant clusters. (c) Gender distribution in each of the 6 giant clusters.
