Figure 4
From: Contrasting runoff trends between dry and wet parts of eastern Tibetan Plateau

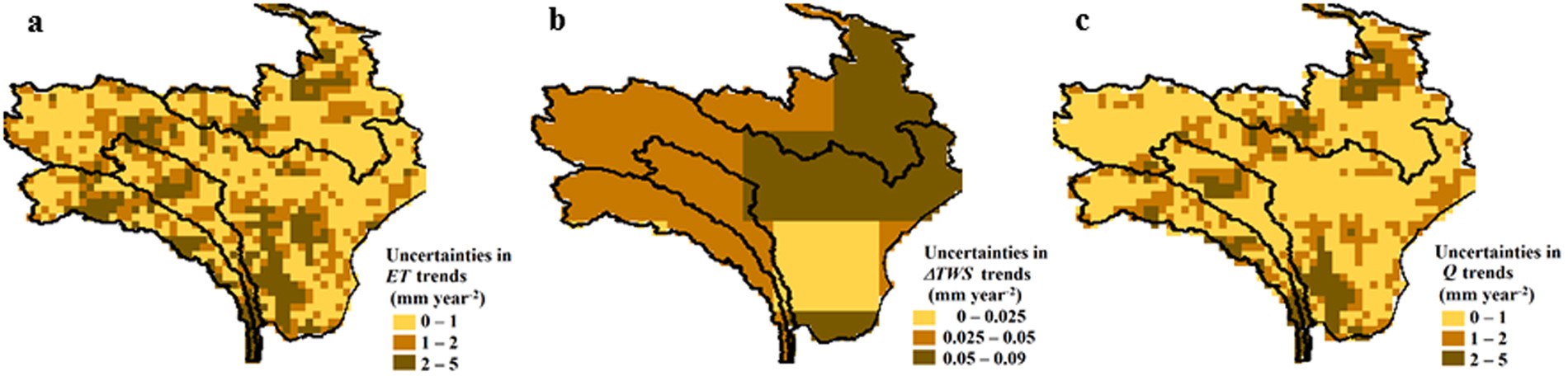

Uncertainties in ET trends, ΔTWS trends, and Q trends for eastern TP region shown in Fig. 1. (a), uncertainties in ET trends by considering the standard deviations of four ET products. (b), uncertainties in ΔTWS trends by considering the inversion error of mascon TWS. (c), uncertainties in reconstructed Q trends. Please note that uncertainties in ΔTWS trends are much smaller than the uncertainties in ET trends or in Q trends. Q trends are less uncertain than ET trends because Q trends are dominated by P trends. The maps were generated using ENVI (v 4.5, https://www.harris.com/solution/envi) © 2017 Harris Corporation.
