Figure 1

From: MicroRNA-7-5p mediates the signaling of hepatocyte growth factor to suppress oncogenes in the MCF-10A mammary epithelial cell

Figure 1The alternative text for this image may have been generated using AI.

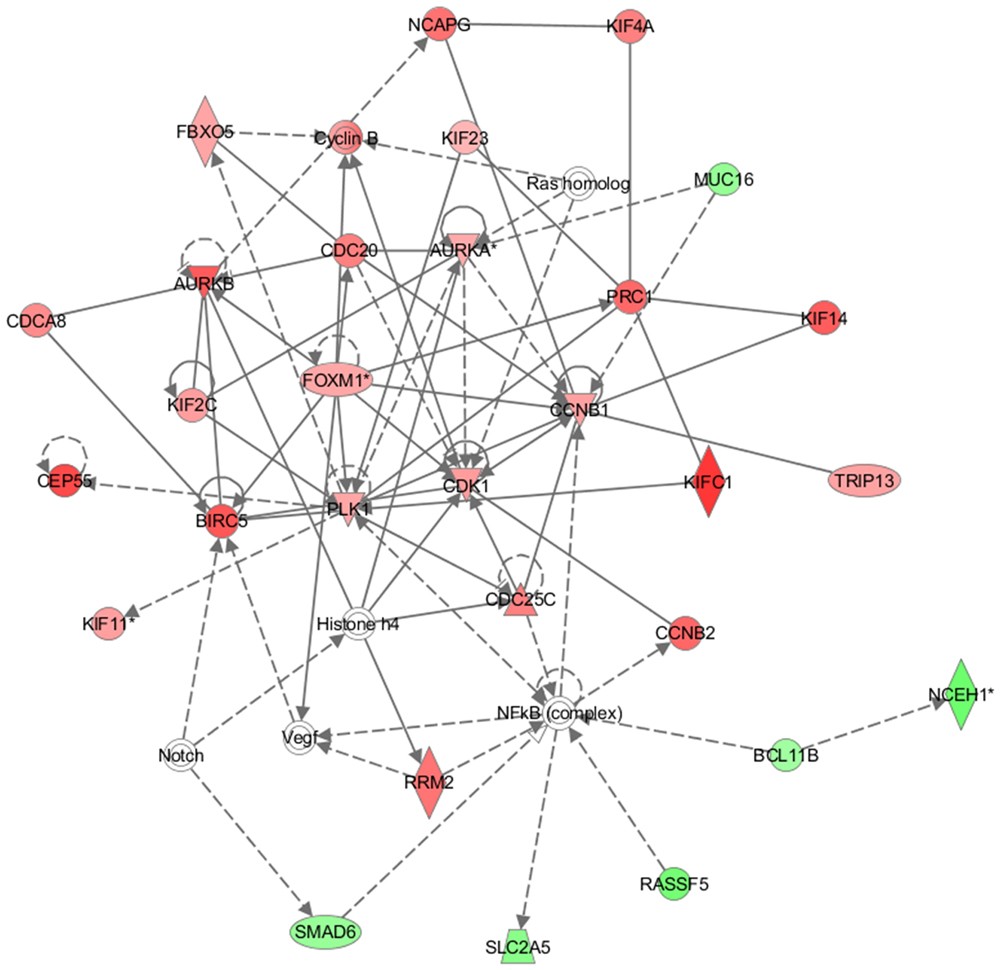

The highest confidence network of genes significantly dysregulated by miR-7. The Ingenuity Pathway Analysis was carried out with the 343 genes that showed significant expression alteration by miR-7 in the MCF-10A cells. The top network identified is “Cell Cycle, Cellular Assembly and Organization, DNA Replication, Recombination, and Repair”. Shapes of red and green color represent upregulated and downregulated genes, respectively. Solid and dashed lines represent direct and indirect interactions, respectively.
