From: Air-oxidation from sulfur to sulfone-bridged Schiff-base macrocyclic complexes showing enhanced antimicrobial activities

Figure 2The alternative text for this image may have been generated using AI.

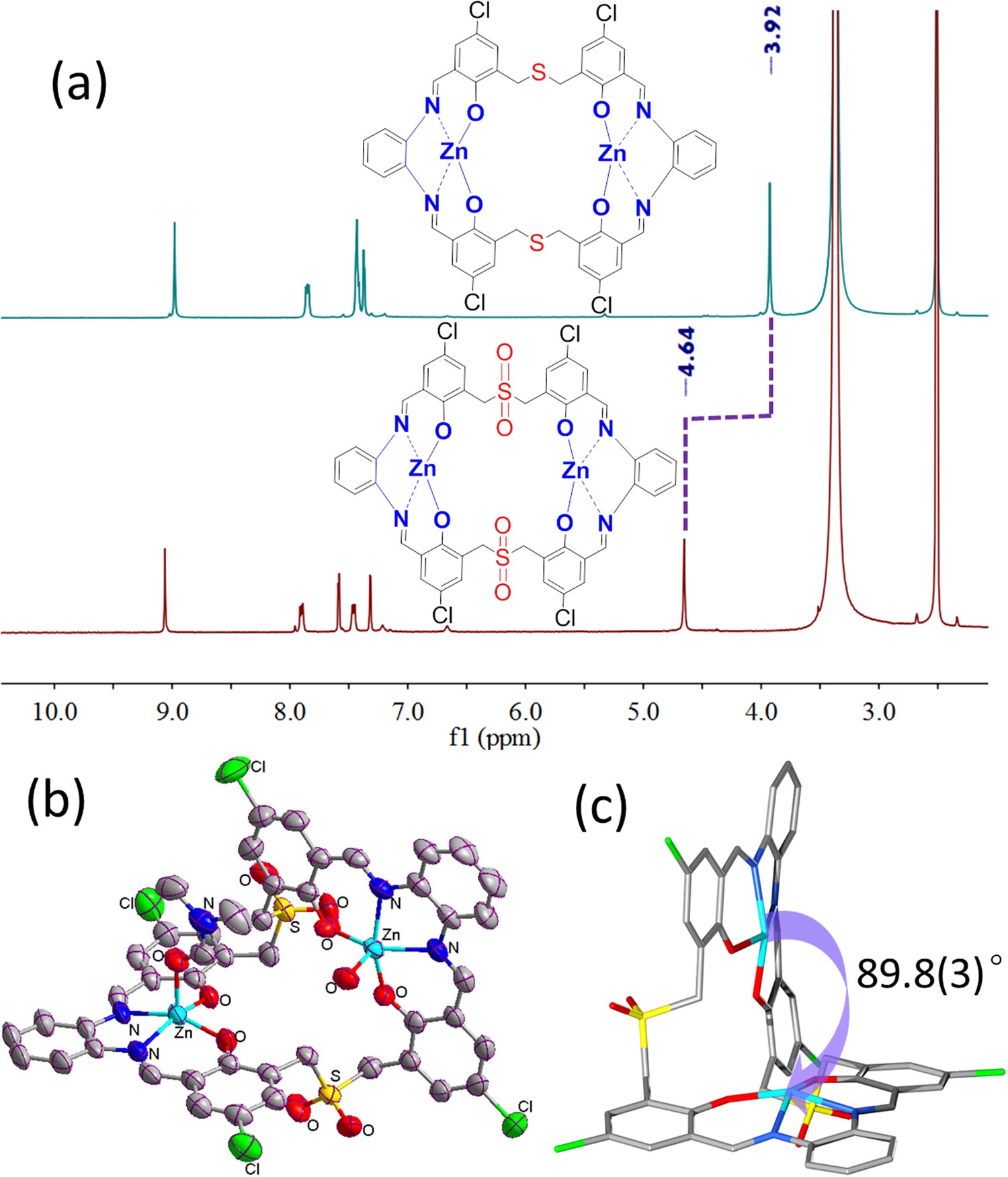

(a) 1H NMR spectral comparisons of dried macrocyclic Zn(II) complexes [Zn2L] and [Zn2LOSO] in DMSO-d 6; (b) ORTEP drawing of [Zn2LOSO(DMF)(H2O)] at the 50% probability level; (c) View of the dihedral angle between the two N2O2 Salen coordination planes in [Zn2LOSO(DMF)(H2O)], where the apical ligands are omitted for clarity.
