From: Identification and characterization of serine protease inhibitors in a parasitic wasp, Pteromalus puparum

Figure 1

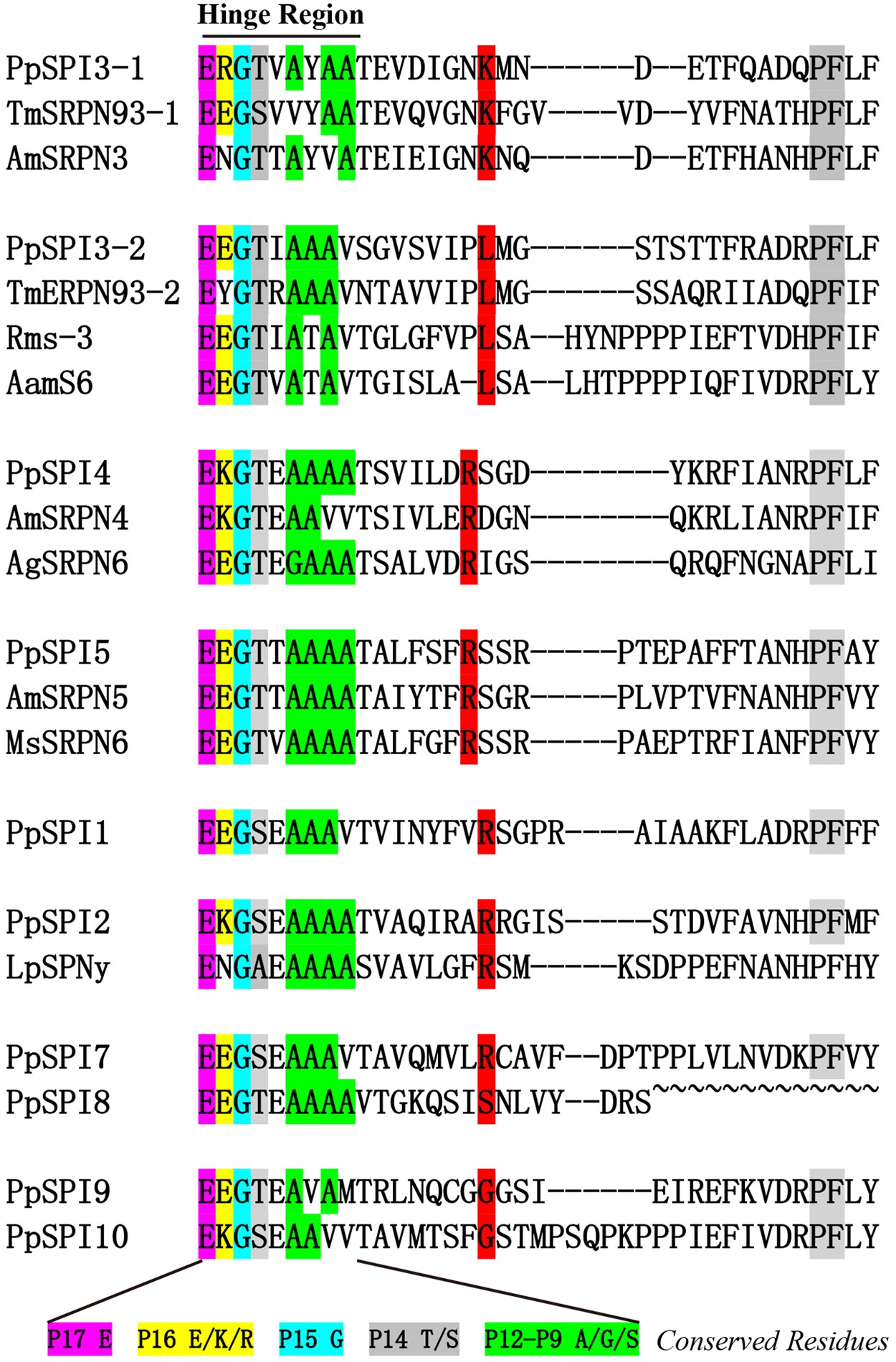

Multiple sequence alignment of the hinge and reactive center loop (RCL) regions of Pteromalus puparum serpins. The hinge and RCL regions of P. puparum serpins were aligned with those serpins with known functions. Predicted P1 residues are highlighted in red. P. puparum serpins are presented in numerical order and grouped with homologous serpins from other insects determined by phylogenetic analysis. The GenBank accession number for sequences used in phylogenetic analysis in Fig. 1: AamS6 (ABS87358.1, Amblyomma americanum); AmSRPN3, AmSRPN4, AmSRPN5 (XP_001122067.2, XP_003249882.1, XP_006562425.1, Apis mellifera); AgSRPN6 (ABJ52806.1, Anopheles gambiae); LpSPNy (ACQ83466.1, Leptopilina boulardi); MsSRPN6 (AAV91026.1, Manduca sexta); Rms-3 (AHC98654.1, Rhipicephalus microplus) and TmSPN93 (BAL03254.1, Tenebrio molitor).
