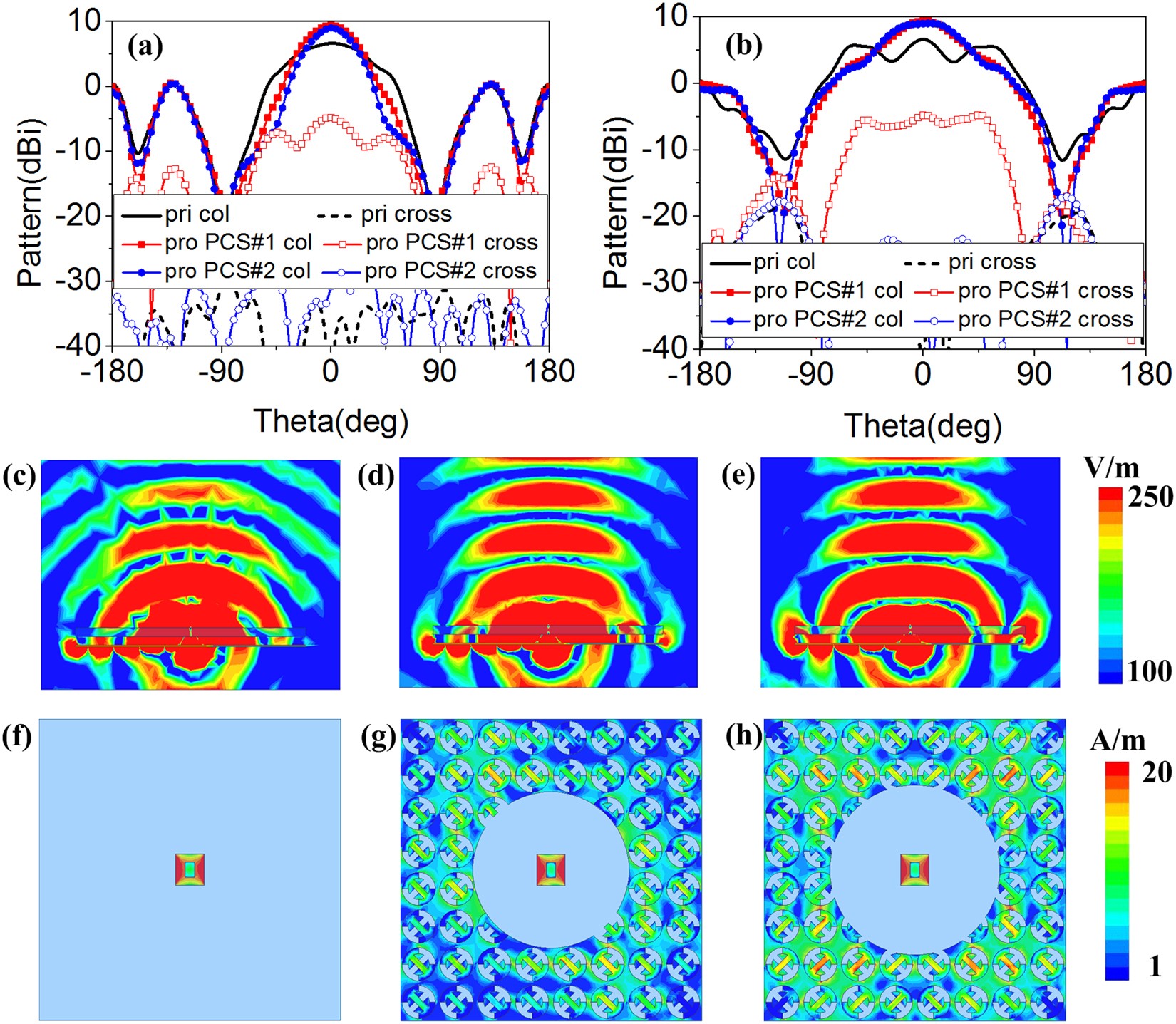

Figure 7

(a) xoz and (b) yoz plane radiation patterns at 10.1 GHz. Electric fields of (c) primary antenna, (d) proposed PCS#1 antenna and (e) proposed PCS#2 antenna at 10.1 GHz. Current distributions of (f) primary antenna, (g) proposed PCS#1 antenna and (h) proposed PCS#2 antenna at 10.1 GHz.
