Figure 6

From: Inhibition of intimal hyperplasia in murine aortic allografts by administration of a small-molecule TLR4 inhibitor TAK-242

Figure 6

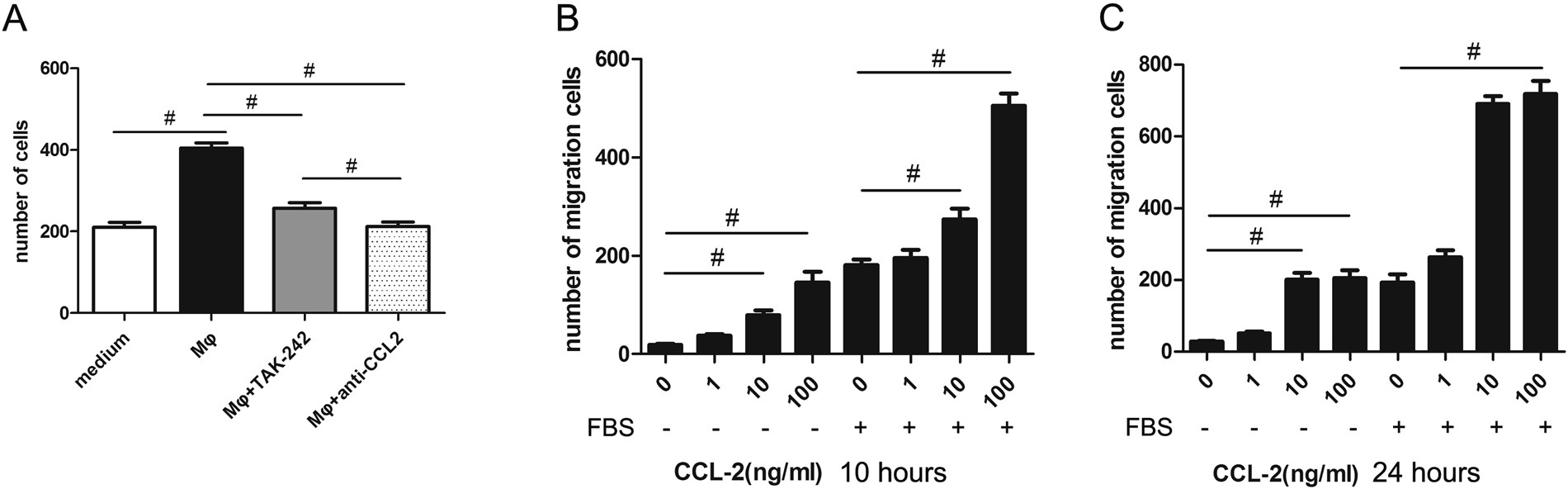

TAK-242 reduces the migration of VSMCs towards CCL2. (A) VSMCs migration was induced by macrophages and neutralized by anti-CCL2 antibody. The VSMC migration towards CCL2 was examined by transwell assay at 10 (B) and 24 hours (C) after seeding. At 10 hours, CCL2 induced VSMC migration in a dose-dependent manner, irrespective of the presence of FBS. At 24 hours, 10 ng/ml CCL2 significantly promoted VSMC migration. There was no significant difference in the number of migrated VSMCs between the high (100 ng/ml) and low (10 ng/ml) concentrations of CCL2. (n = 5 independent experiments, # Bonferroni corrected level of significance <0.05).
