Figure 8

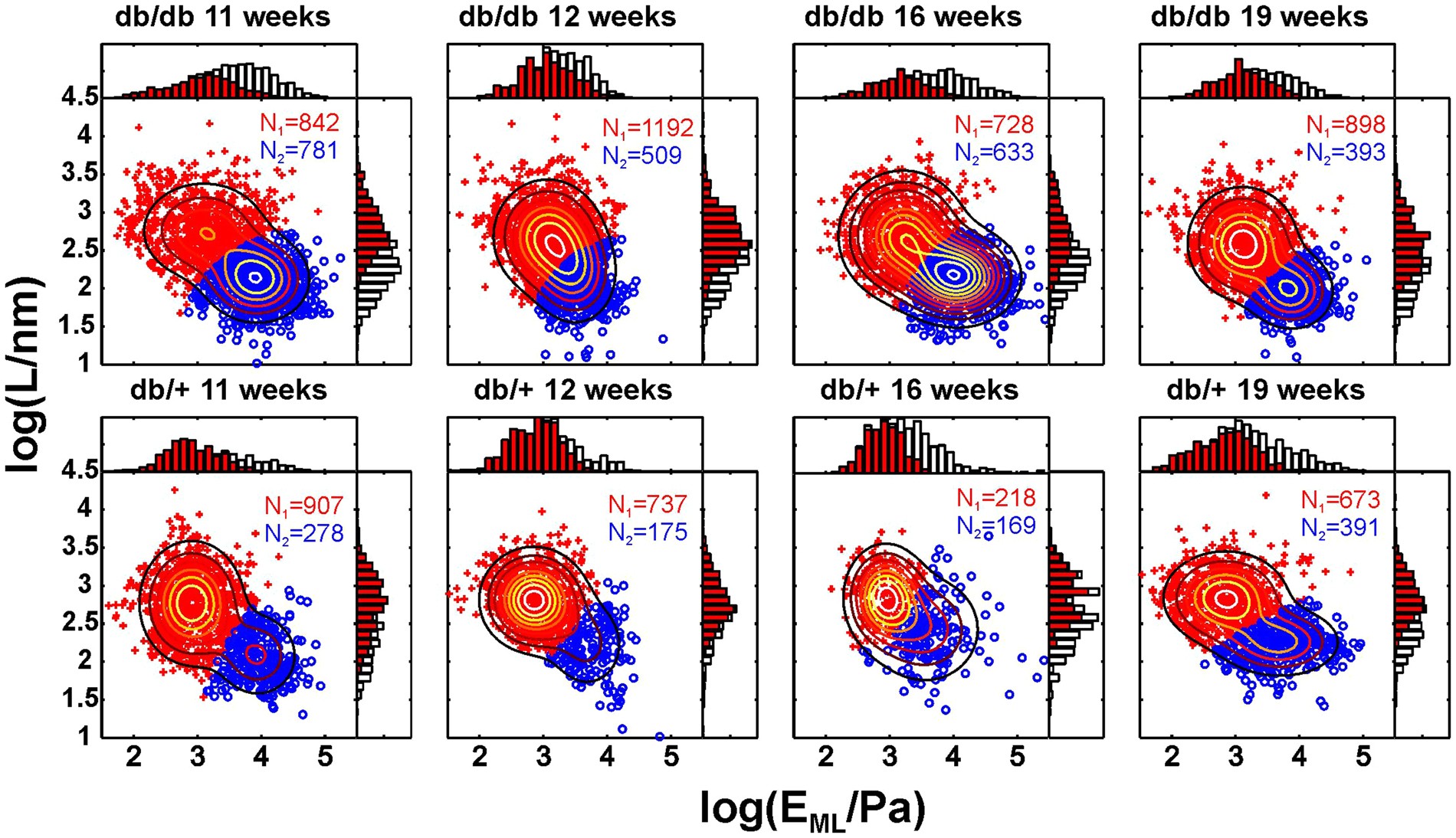

Complete experimental dataset and its classification for diabetes (db/db) and control (db/+) mice at different ages. Each panel shows data in the form of a scatter plot of the elastic modulus at maximal load EML versus brush length L. The contour lines show Gaussian mixture distributions with two components fit to the data. Data points shown in red (with the glycocalyx) and blue (without the glycocalyx) were classified using an automatic clustering procedure. The histograms show the marginal distributions of EML and L (white bars – all data points, red bars – red data points). Numeric labels show numbers of data points with the glycocalyx (red) and without the glycocalyx (blue) detection.
