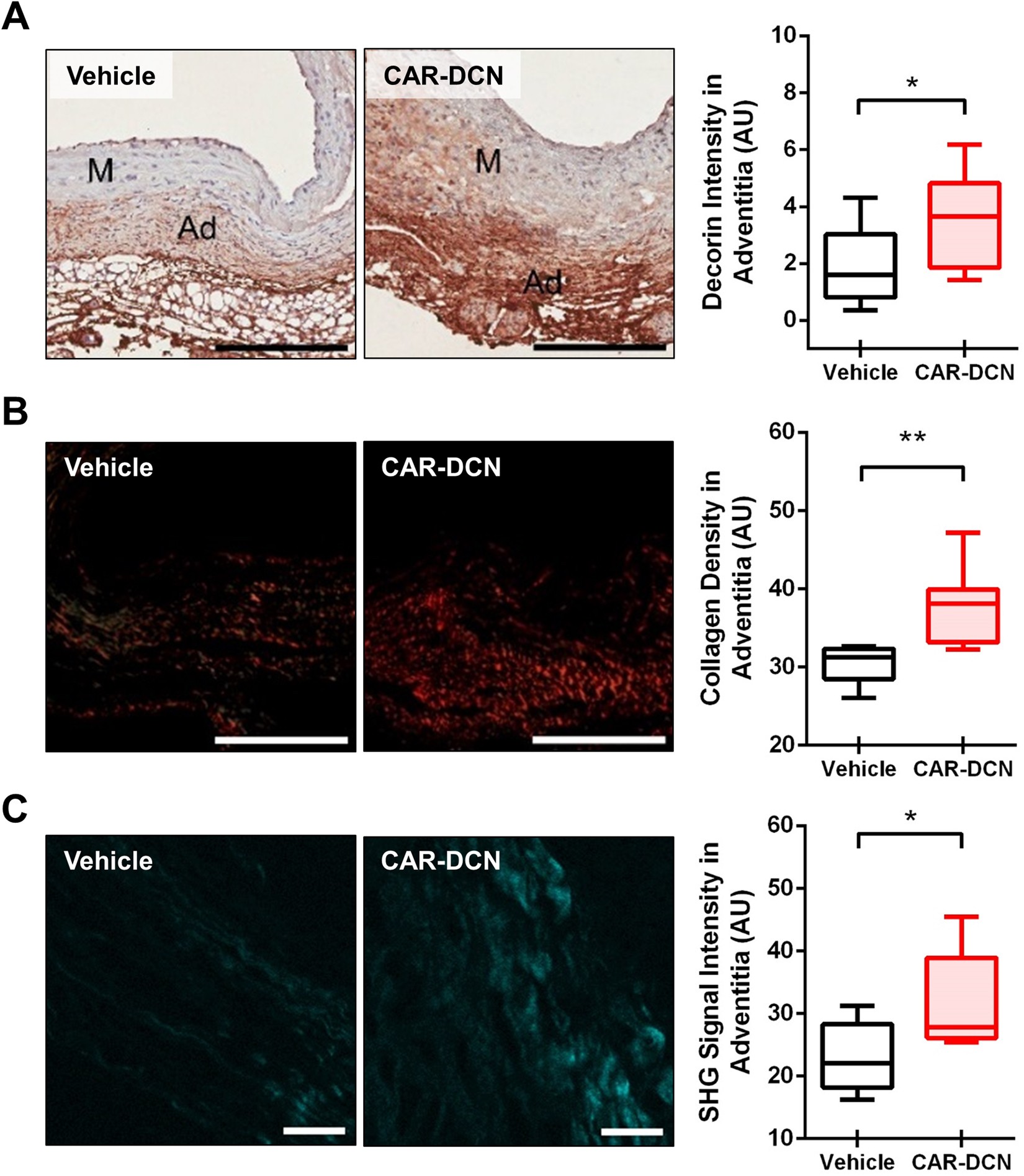

Figure 3
From: Recombinant Decorin Fusion Protein Attenuates Murine Abdominal Aortic Aneurysm Formation and Rupture
CAR-DCN treatment increases adventitial DCN and adventitial collagen organization. Representative (A) decorin and (B) picrosirius red staining (left) and quantification of (A) decorin and (B) picrosirius red staining intensity (right) in abdominal aortas from of surviving ApoE-KO mice in different treatment groups (n ≥ 6 per group). M, media; Ad, adventitia; Scale bar: 200 μm. (C) Representative SHG imaging (left) and quantification of SHG signal intensity (right) in adventitia of abdominal aortas from surviving ApoE-KO mice in different treatment groups (n ≥ 6 per group). Scale bar: 20 μm. Results are expressed as box-and-whisker plot, *P < 0.05, **P < 0.01 by Student t-test.
