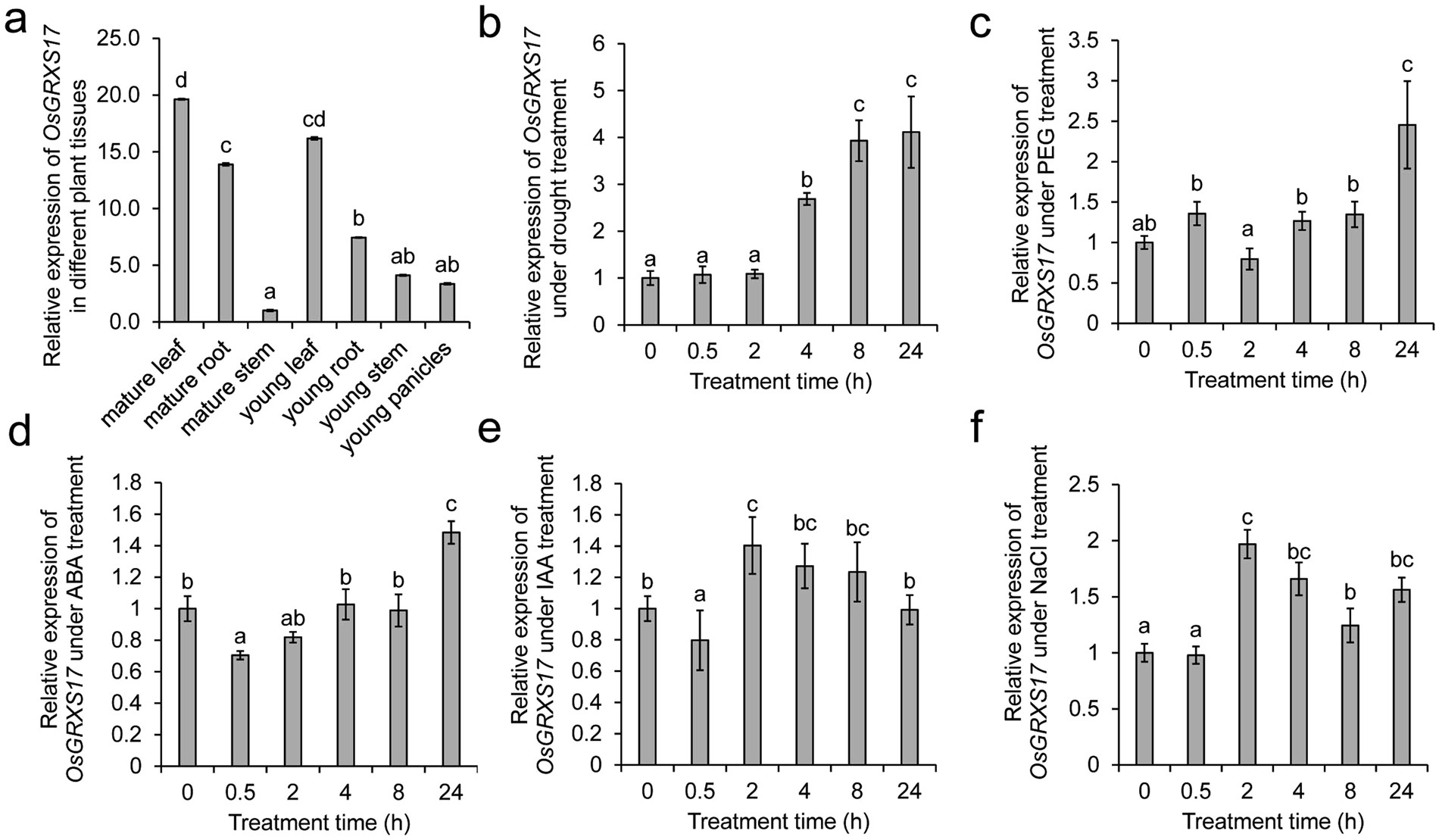

Figure 3
Expression pattern of OsGRXS17 in different tissues and under different stress treatments. (a) Relative expression level of OsGRXS17 in different tissues of two-week-old wild-type rice plants by qRT-PCR analysis. Relative expression level of OsGRXS17 in the shoots of two-week-old wild-type rice plants treated with drought stress (b), PEG (c), ABA (d), IAA (e) and NaCl (f). Data are expressed as relative values based on wild-type plants before treatments as reference sample set to 1.0. Error bars represent the means ± SD (n = 3). Values with the same lowercase letter are not significantly different at the p-value < 0.05 with Tukey’s test.
