Figure 2
From: Functional diversity of topological modules in human protein-protein interaction networks

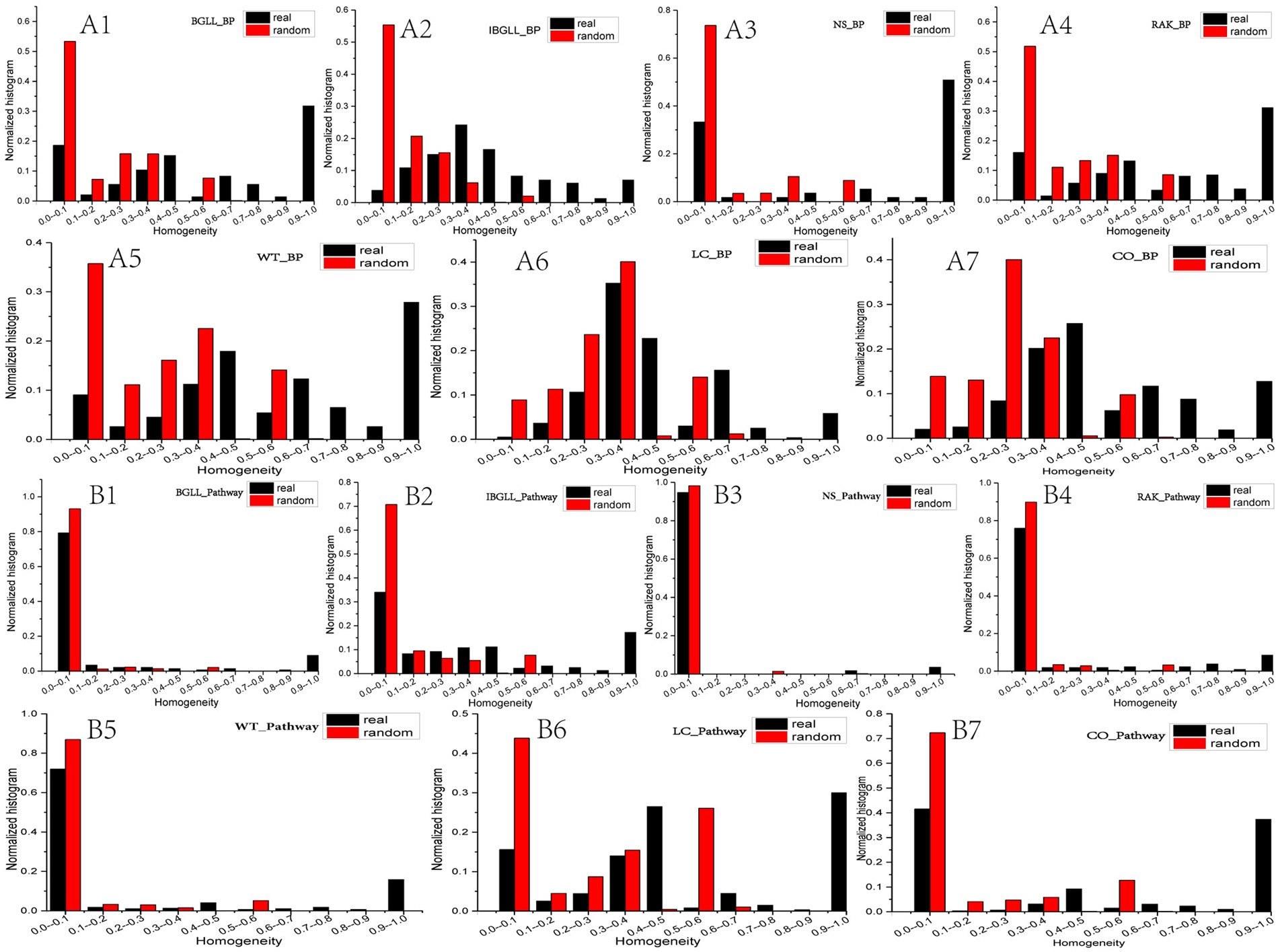

Homogeneity of BP and pathway associations compared with random control. Figs A1–7 illustrate the BP homogeneity comparisons between real and random control for all seven methods. Figs B1–7 show the pathway homogeneity comparisons between real and random control for all seven methods.
