Figure 4
From: Functional diversity of topological modules in human protein-protein interaction networks

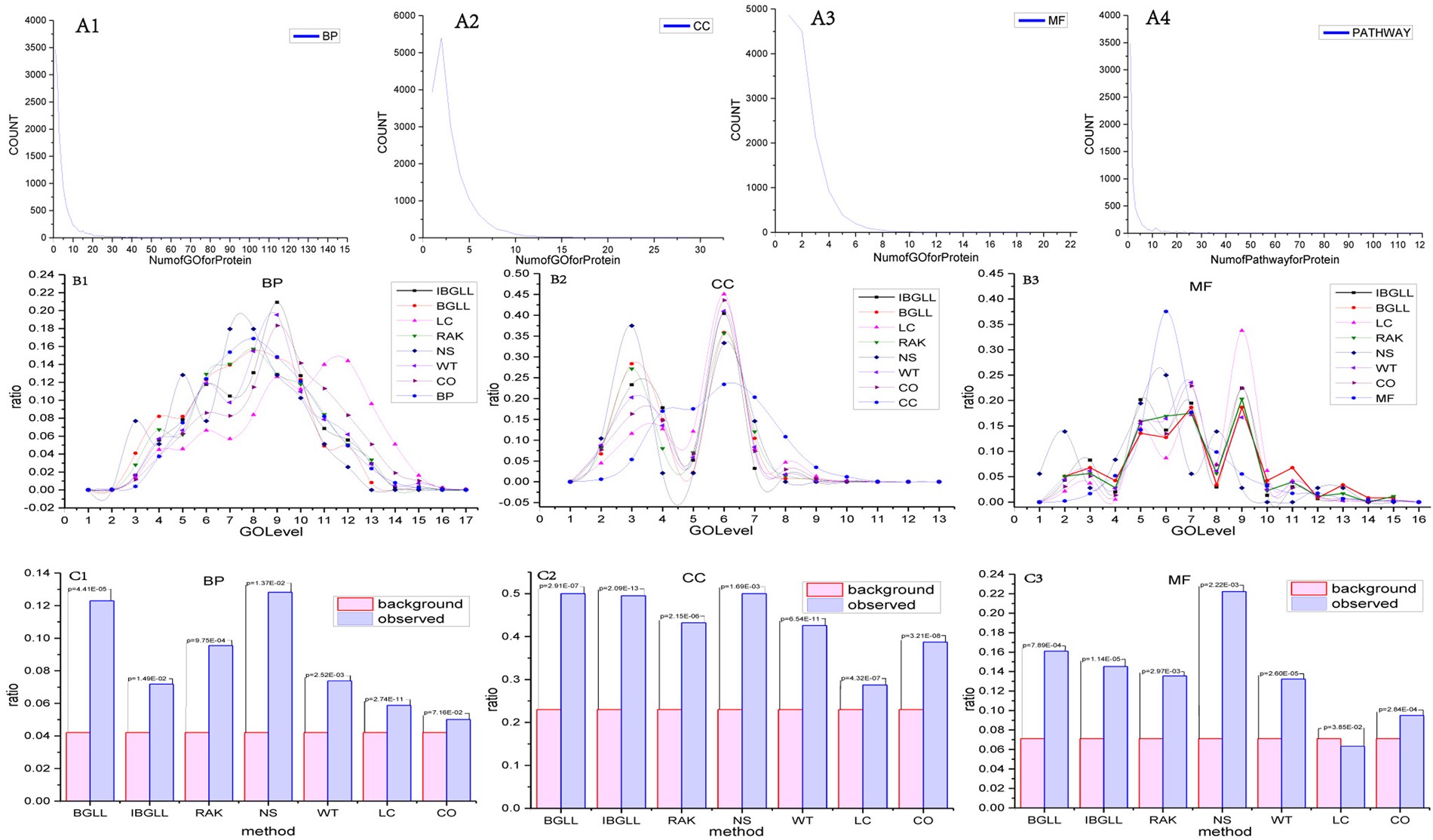

GO and pathway properties and GO level distribution. The underlying reasons for the diverse biological meaning of modules were examined from three aspects. Figures A1–4 indicate the distribution of GO terms and proteins. Figures B1–3 indicate the distribution of GO term levels, thus resulting in higher homogeneity in modules (for each method) in terms of BP, CC and MF. Figures C1–3 indicate the significance of general GO terms by module enrichment, and the pink bars indicate the background ratio of GO terms (level > = 4) with a ratio of the number of modules for each method for the ratio of the number of modules for each method; the p-value denotes the significance of the difference between the two ratios according to a chi-square test.
