Figure 1
From: Declining pre-monsoon dust loading over South Asia: Signature of a changing regional climate

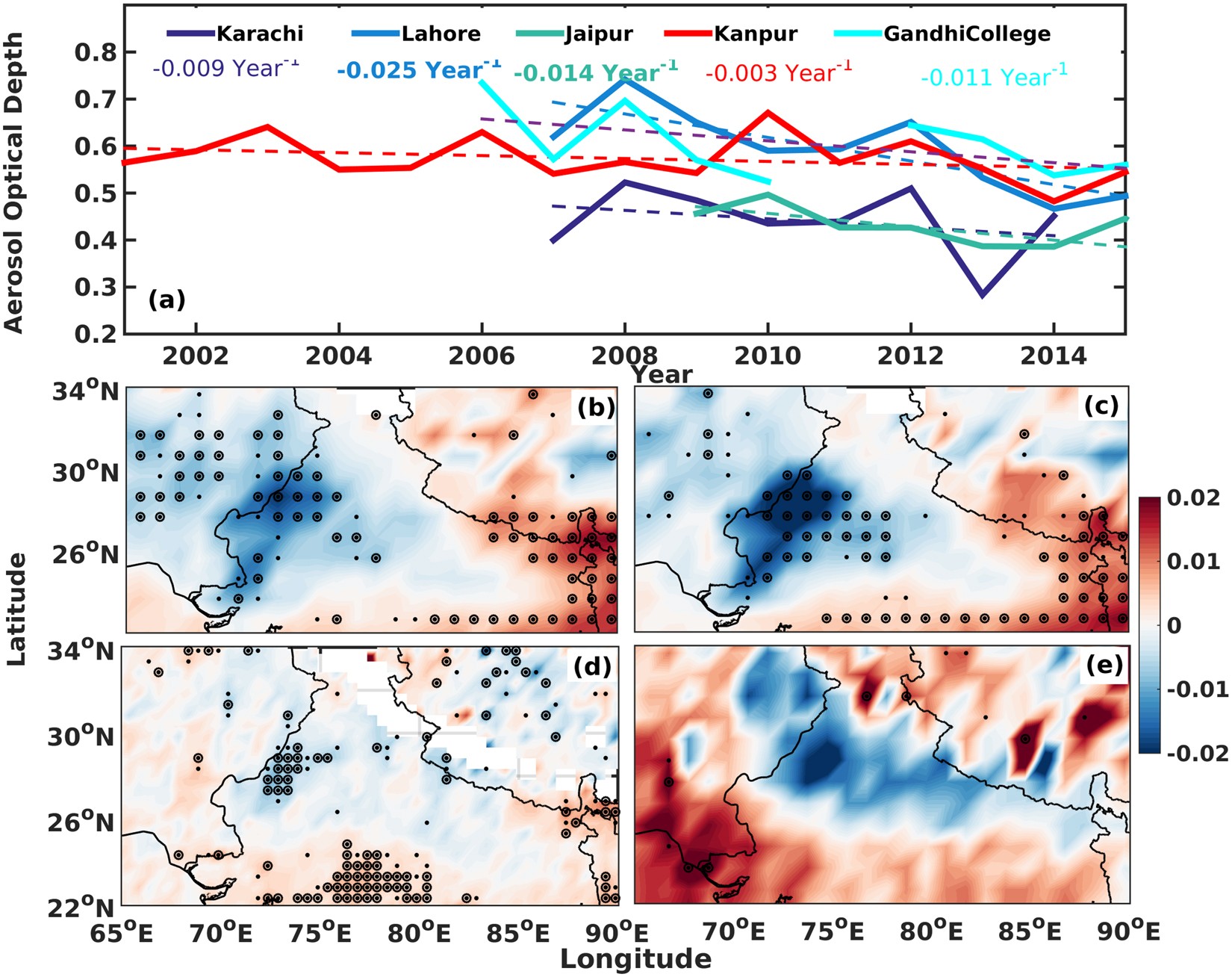

(a) The trend (year−1) of seasonal mean aerosol optical depth over the AERONET sites in the IGP for pre-monsoon season. The bold text indicates significance at 90% confidence level. (b) to (e) shows the spatial pattern of trends (year−1) in aerosol optical depth observed using different sensor/satellite platforms (b) MODIS Terra & (c) MODIS Aqua combined Deep Blue Dark Target, (d) MISR and (e) OMI-UV Aerosol Index. The black dots (circle) represent statistical significance at 90% (95%) confidence level. The map was generated using MATLAB 2015b, www.mathworks.com.
