Figure 5
From: Greatly enhanced light emission of MoS2 using photonic crystal heterojunction

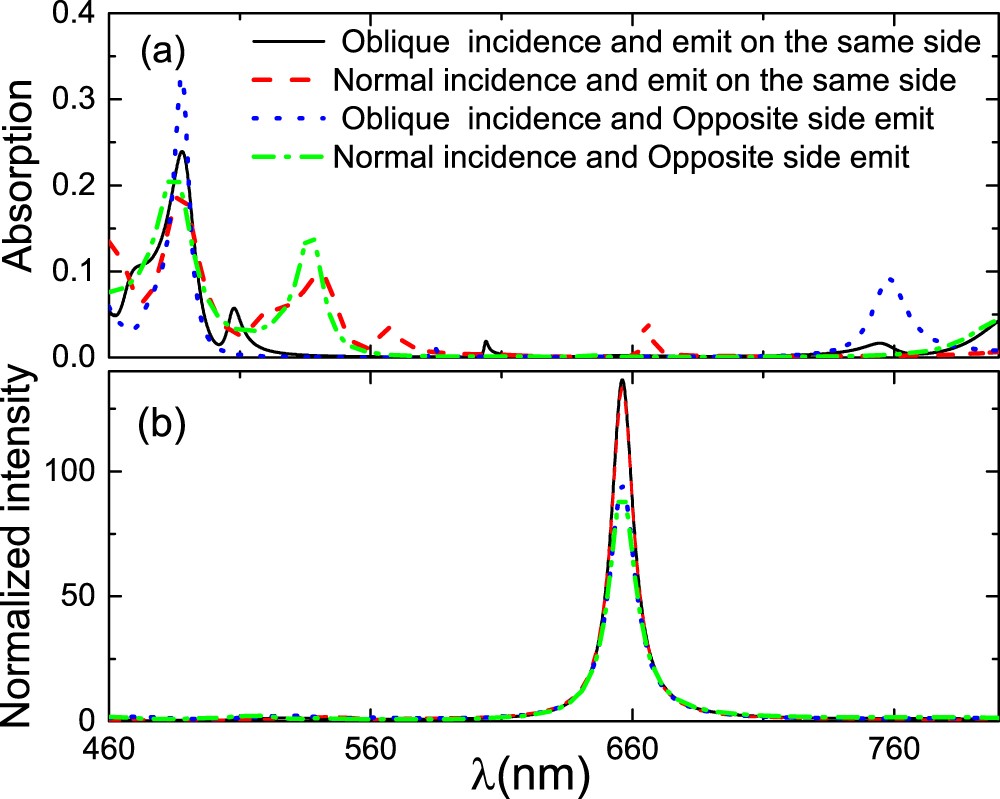

(a) Light absorption and (b) light emission of MoS2 in homojunction PhC under different pumping lights. The black solid line: when the pumping light is obliquely incident and the pumping and outgoing lights are on the same side; the red dashed line: when the pumping light is normally incident and the pumping and outgoing lights are on the same side; the blue dotted line: when the pumping light is obliquely incident and the pumping and outgoing lights are on opposite sides; the green dash-dotted line: when the pumping light is normally incident and the pumping and outgoing lights are on opposite sides.
