Figure 2
From: Face Dependence of Schottky Barriers Heights of Silicides and Germanides on Si and Ge

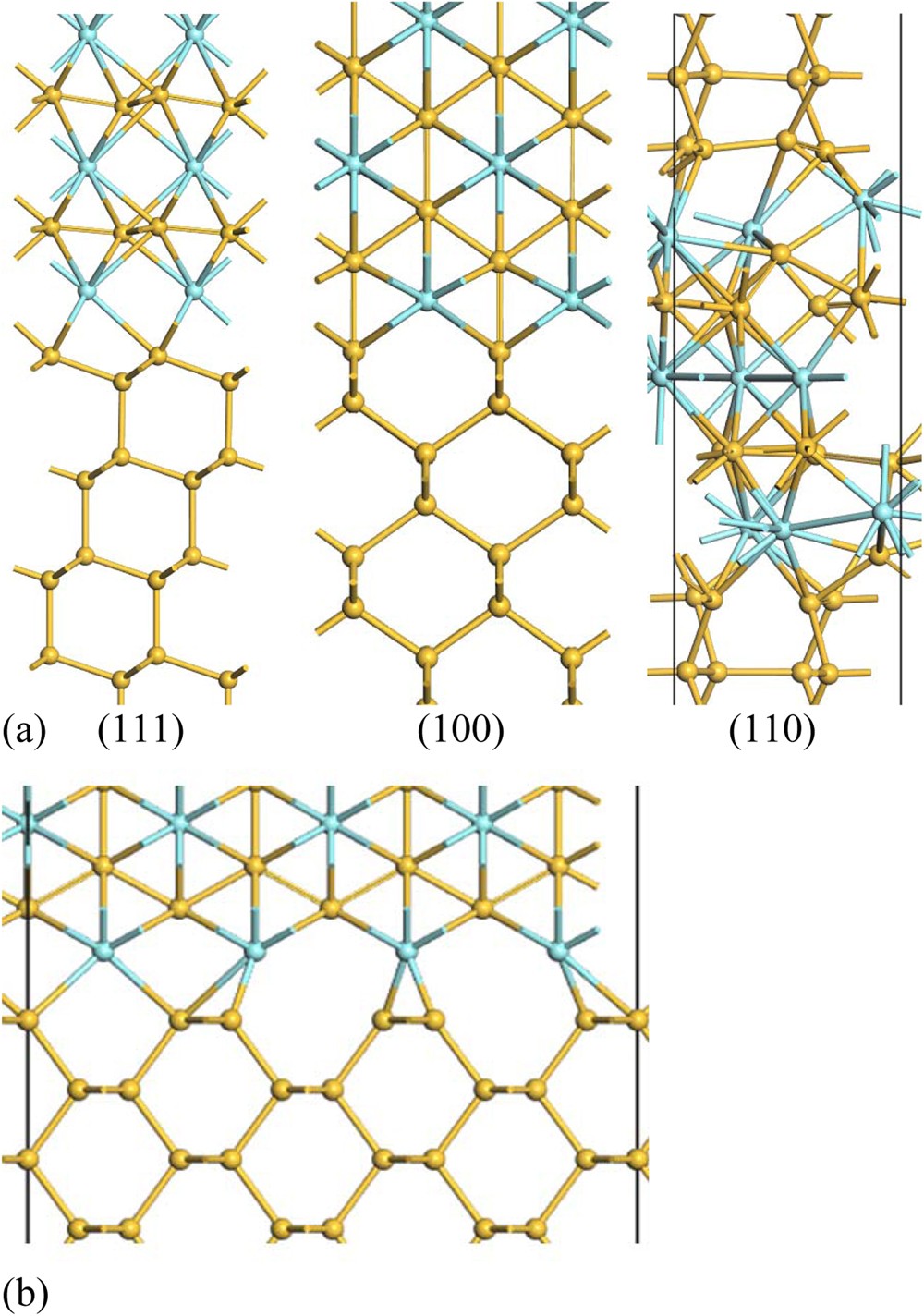

(a) Atomic structure of (111), (100), and (110) Si/YSi2 interfaces; the (110) Si/YSi2 interface with a disordered YSi2 layer. (b) The large (110) Si/YSi2 interface, not used in the calculations.
