Figure 3

From: Repurposing a photosynthetic antenna protein as a super-resolution microscopy label

Figure 3

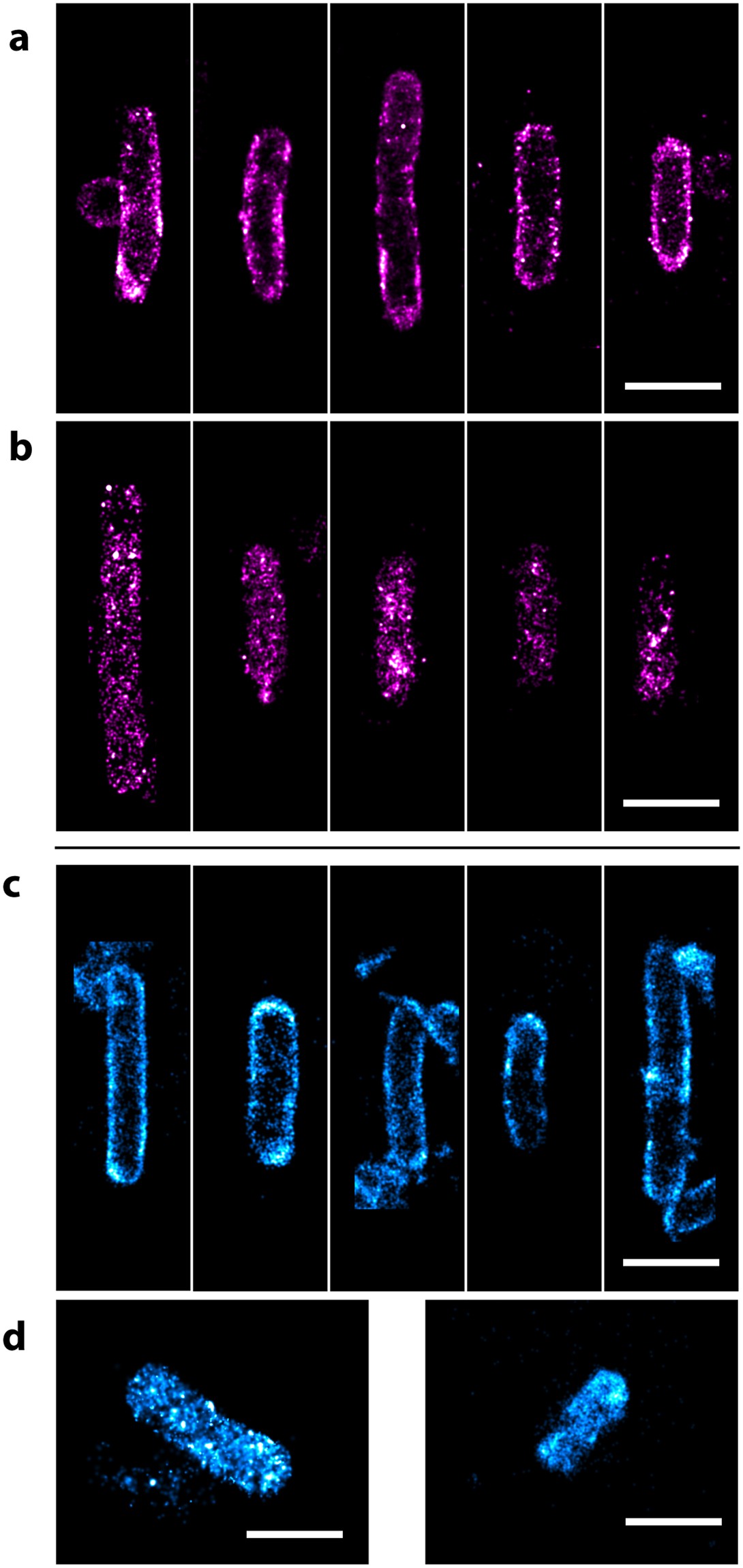

STORM imaging of CpcA-PEB and CpcA-PCB in E. coli. (a) CydB-CpcA-PEB localized to the cytoplasmic membrane demonstrating a heterogenous distribution. (b) Reconstructions of CpcA-PEB as expressed freely into the cytoplasm showing a more even distribution. STORM imaging of (c) CydB-CpcA-PCB and (d) cytoplasmic CpcA-PCB. Images were rotated with bilinear interpolation and the scale bar represents 1 μm.
