Figure 4
From: Repurposing a photosynthetic antenna protein as a super-resolution microscopy label

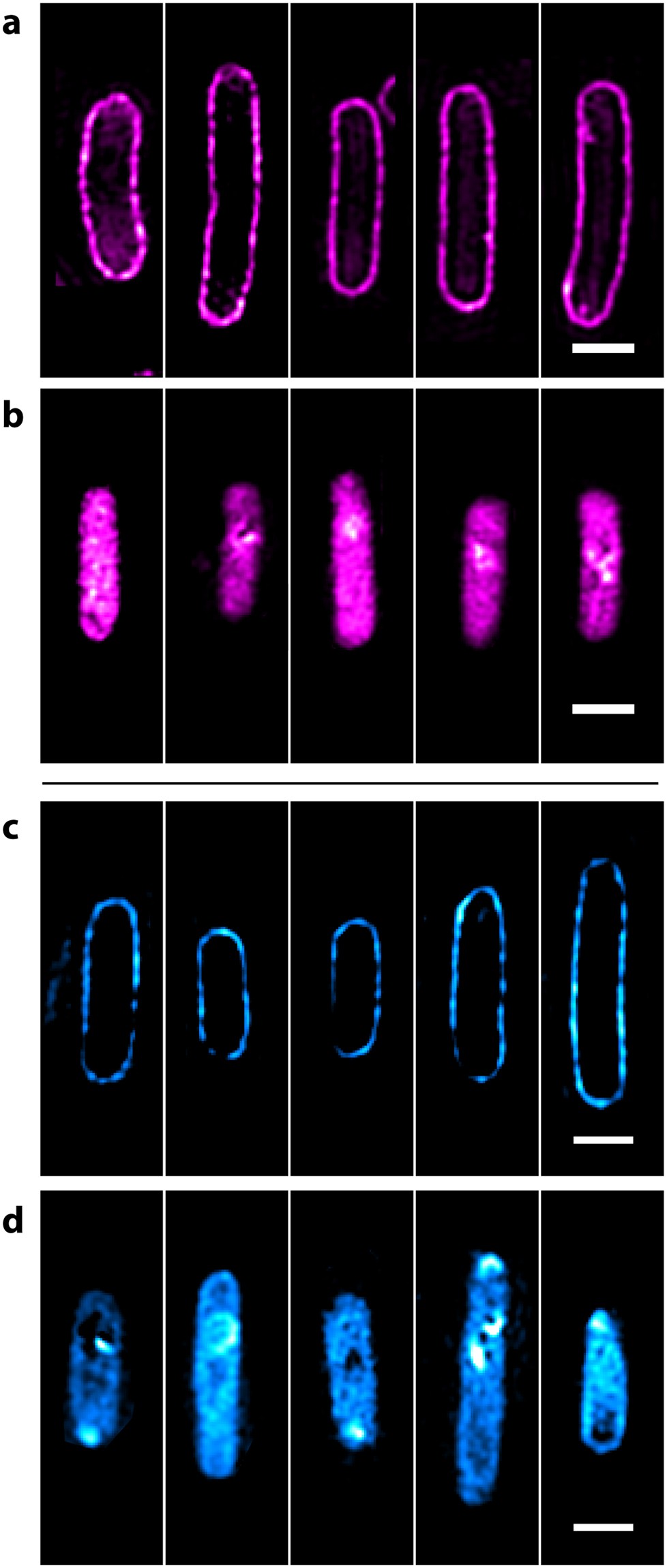

Structured Illumination Microscopy (SIM) of CpcA-PEB and CpcA-PCB in E. coli. (a) SIM imaging of CydB-CpcA-PEB localized to the cytoplasmic membrane. (b) Reconstructions of free CpcA-PEB in the cytoplasm. SIM imaging of (c) CydB-CpcA-PCB and (d) cytoplasmic CpcA-PCB. Images were rotated with bilinear interpolation and the scale bar represents 1 μm.
