Figure 3
From: MicroRNA-like RNAs from the same miRNA precursors play a role in cassava chilling responses

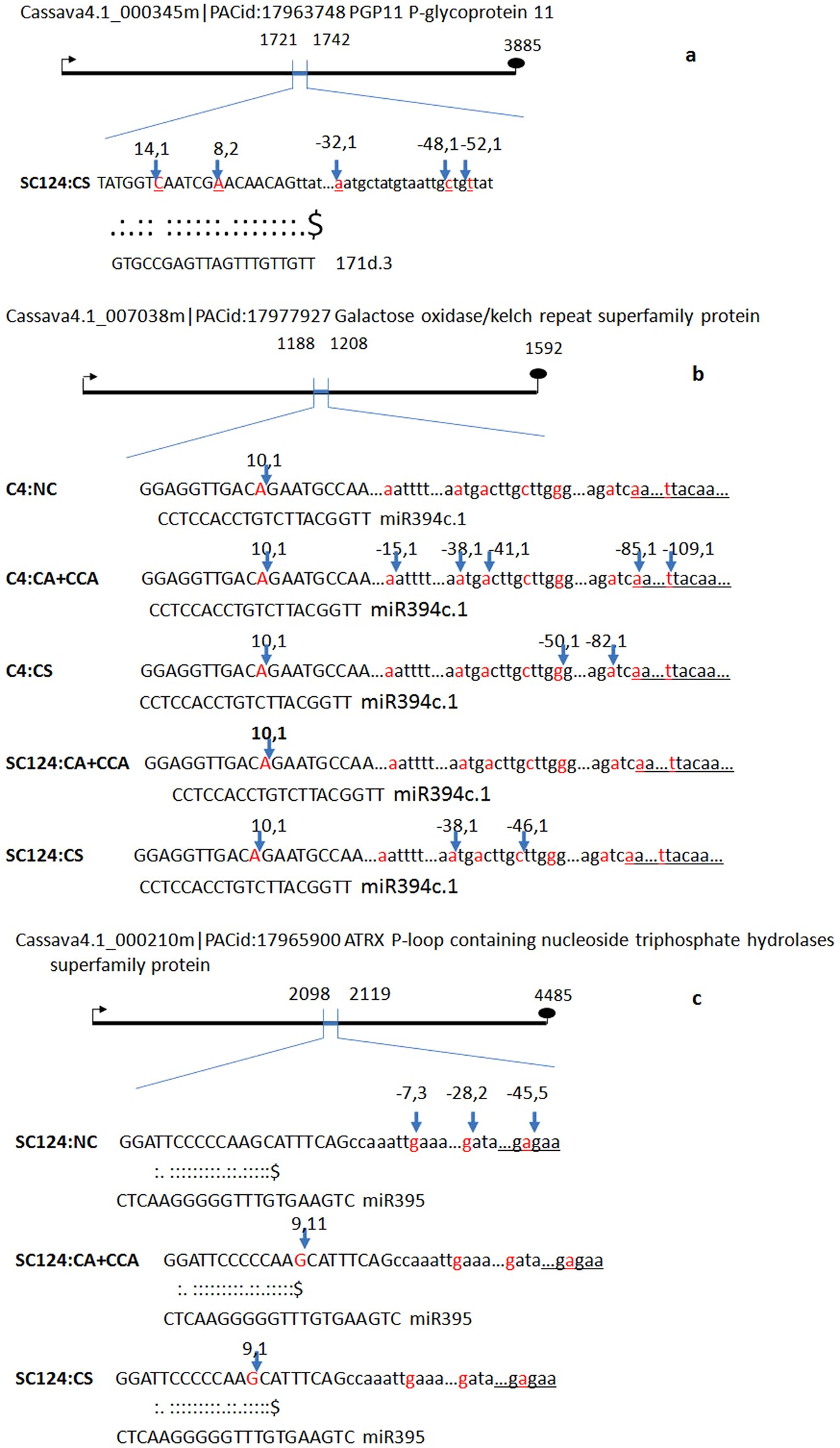

MiRNA cleavage sites on target genes of miR395, miR394 and half-phased miR171d.3 identified by 5′-RACE analysis. For each miRNA, the target sequence is shown on the top and the miRNA sequence on the bottom. The numbers above the arrow indicate the position and events of cloned PCR products. (a) The cleavage site of cassava4.1_000345m by miR1171d.3. (b) The cleavage site of cassava4.1_007038m by miR394c.1. (c) The cleavage site of cassava4.1_000210m by miR395. SC124 and C4 are two cassava cultivars used in this study, and NC, CA, CCA and CS are the four cold treatments (see methods).
