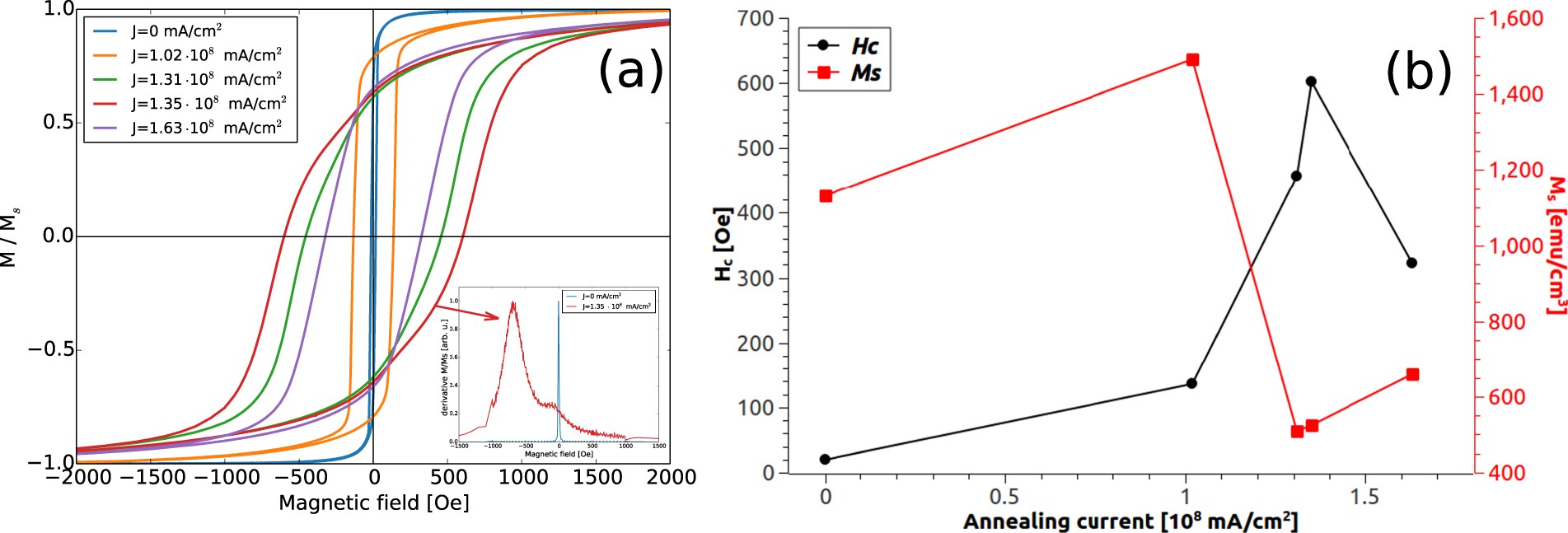

Figure 5

Magnetic characterizations: (a) hysteresis loops for the in plane direction of the magnetization measured at room temperature. In the inset: first derivatives of the blue curve, related to the as prepared film and red curve, related to current annealed film at J = 1.35 · 10⁸ mA/cm². (b) Values of H _c and M _s for the different current densities.
