Figure 6
From: Improving Gene Regulatory Network Inference by Incorporating Rates of Transcriptional Changes

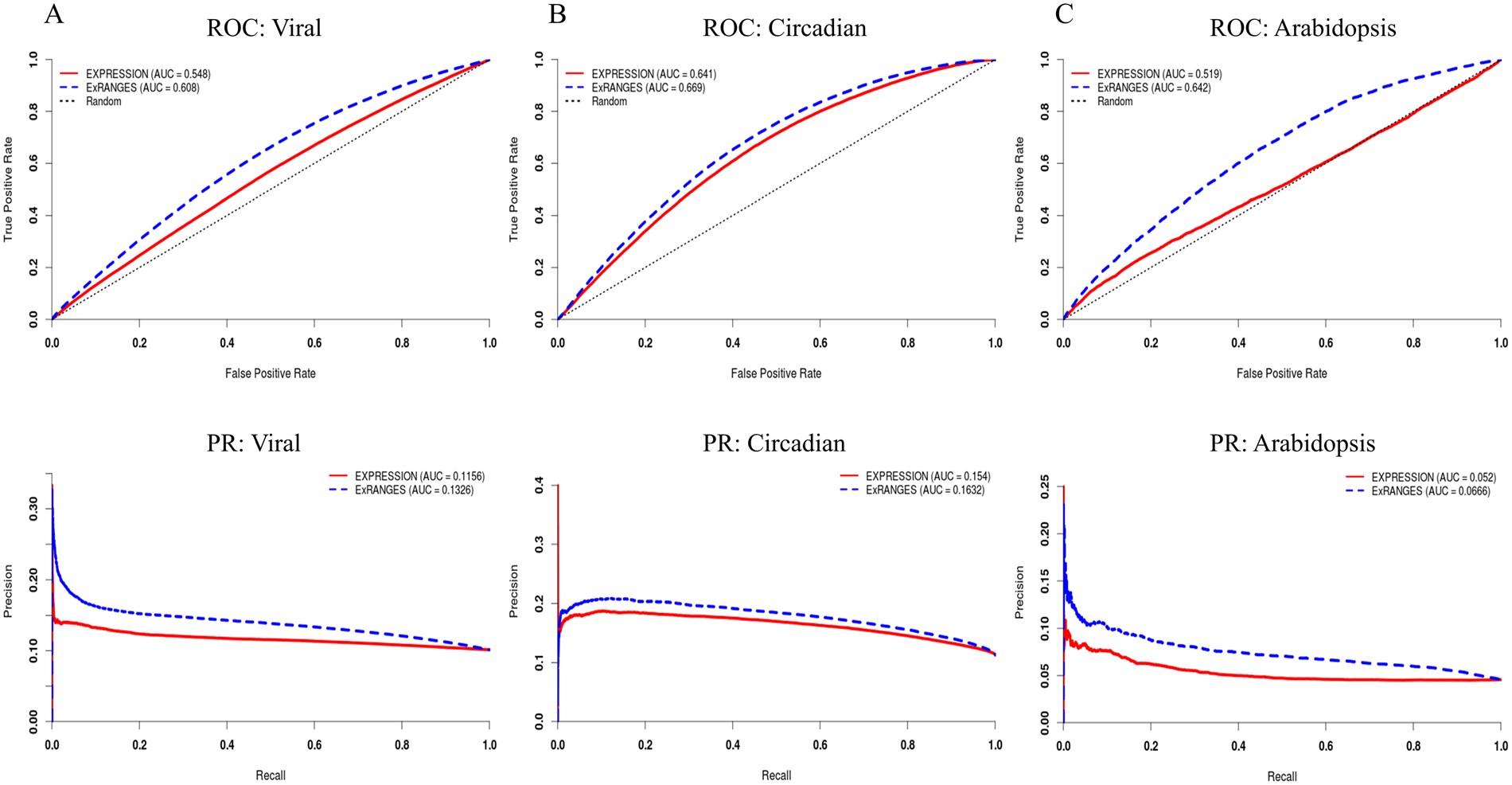

Summary of ExRANGES Improvement across Three Data Sets from Different Species. ROC and Precision-Recall (PR) curves for targets of all ChIP-Seq validated TFs as identified using GENIE3 with either EXPRESSION (solid) or ExRANGES (dotted) for. (A) CircaDB data set from mouse tissues. (B) Human viral data set. (C) Arabidopsis circadian data set across different environmental variables.
